Get the whole image™
About
The CS Gimbal with the phone allows you to take repetitive photos both outside and inside the car. Along with CS Robot the system can automatically circle around a car or a small truck while moving along a track on the ground, while the Head stabilizes the phone to take perfect pictures.
The magnetic tape stuck to the track determines the driving path of the device, while the fragments of the tape stuck across the track mark the stopping points of the device.
VUMO CarScanner forms a system that allows you to make automatic and repeatable shooting of the car from the outside or the inside creating a 360-degree view of the outside or the inside of the vehicle.
Content:
Preparation:

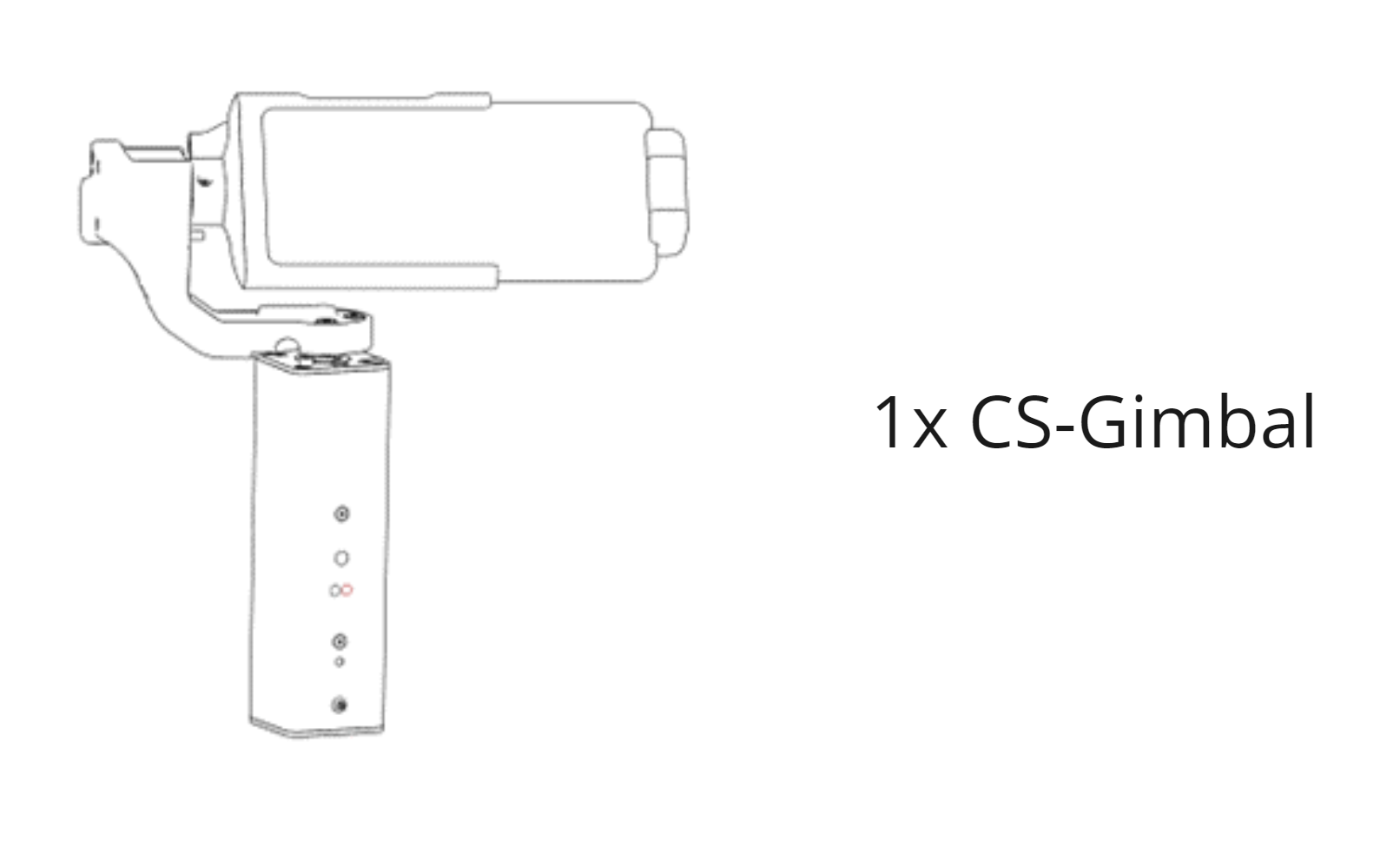

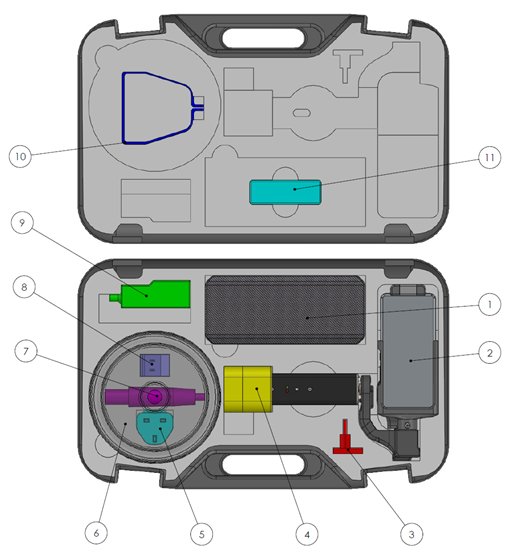

CS-Gimbal package includes:
|
7. Stand pole 8. US adapter 9. CS charger 10. Power Bank bracket 11. Power bank stand |

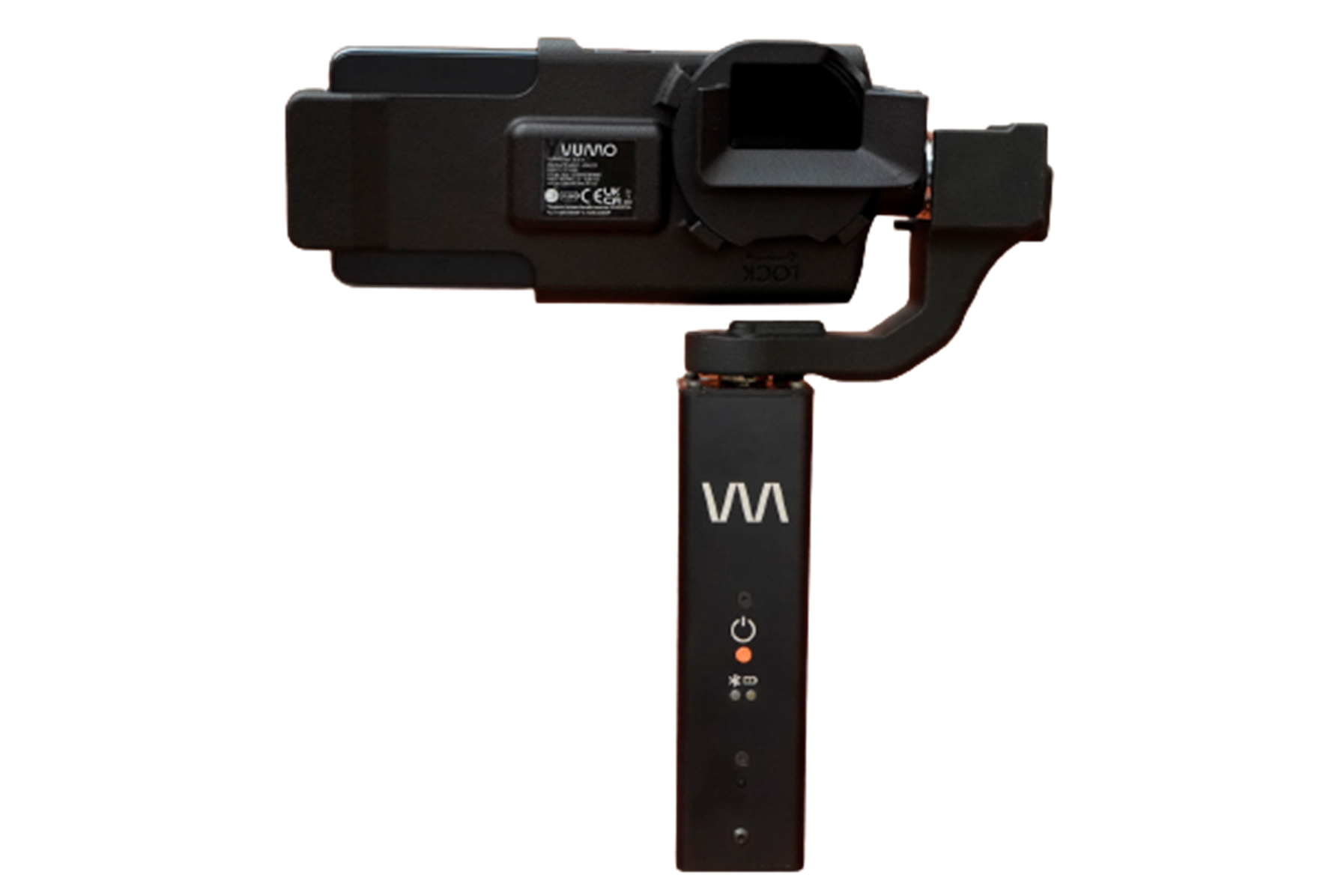

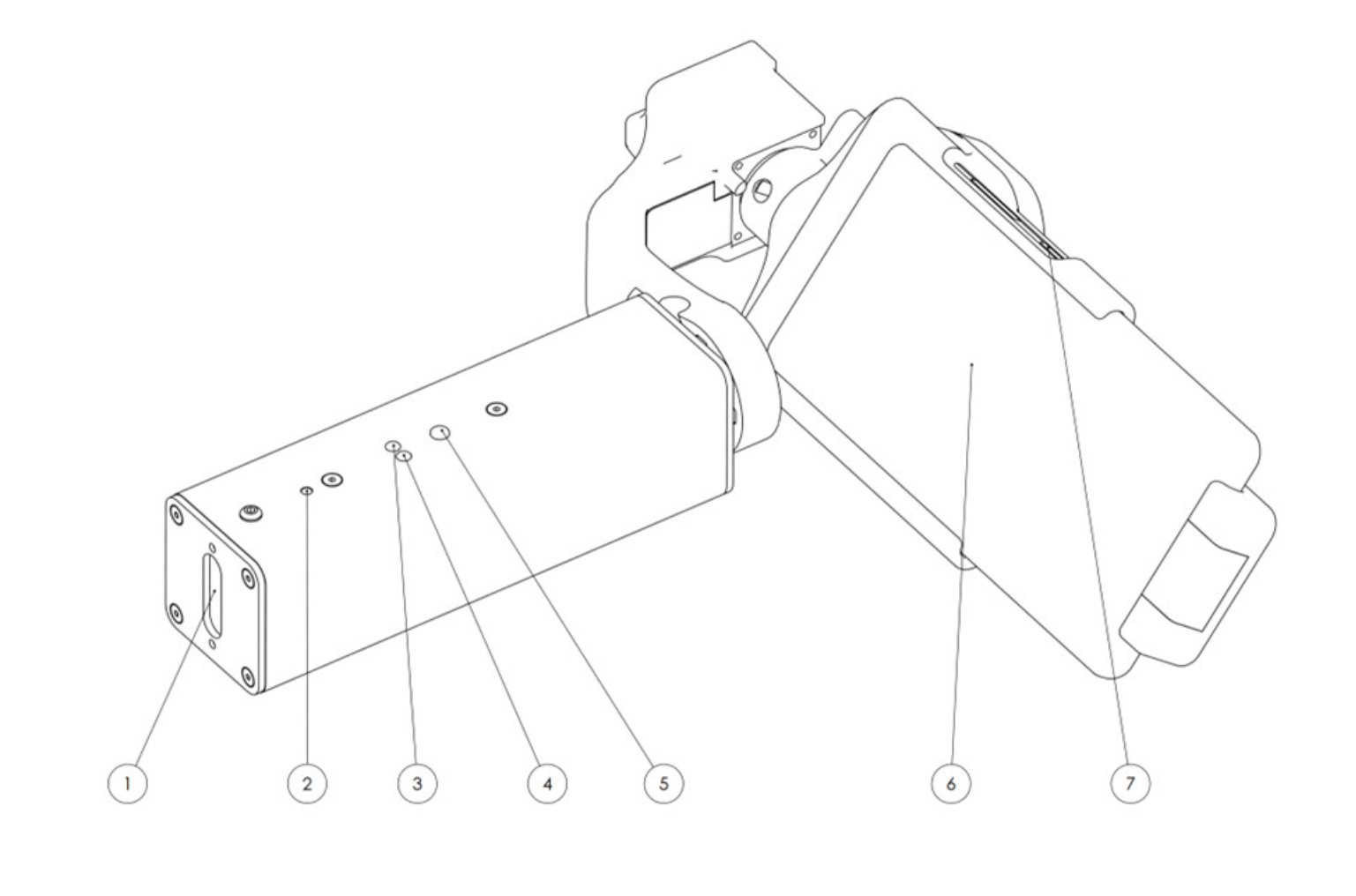

The basics:
|
5. Action button 6. Screen 7. Screen button |
Getting Started:

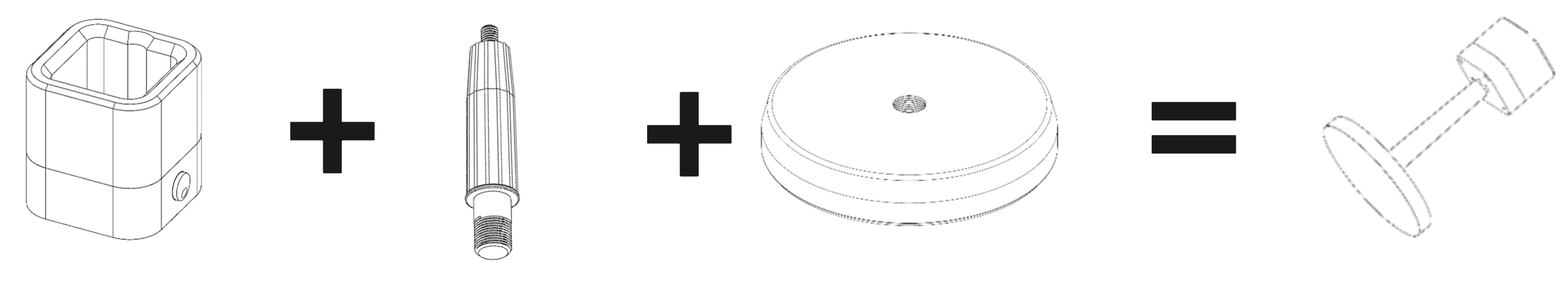

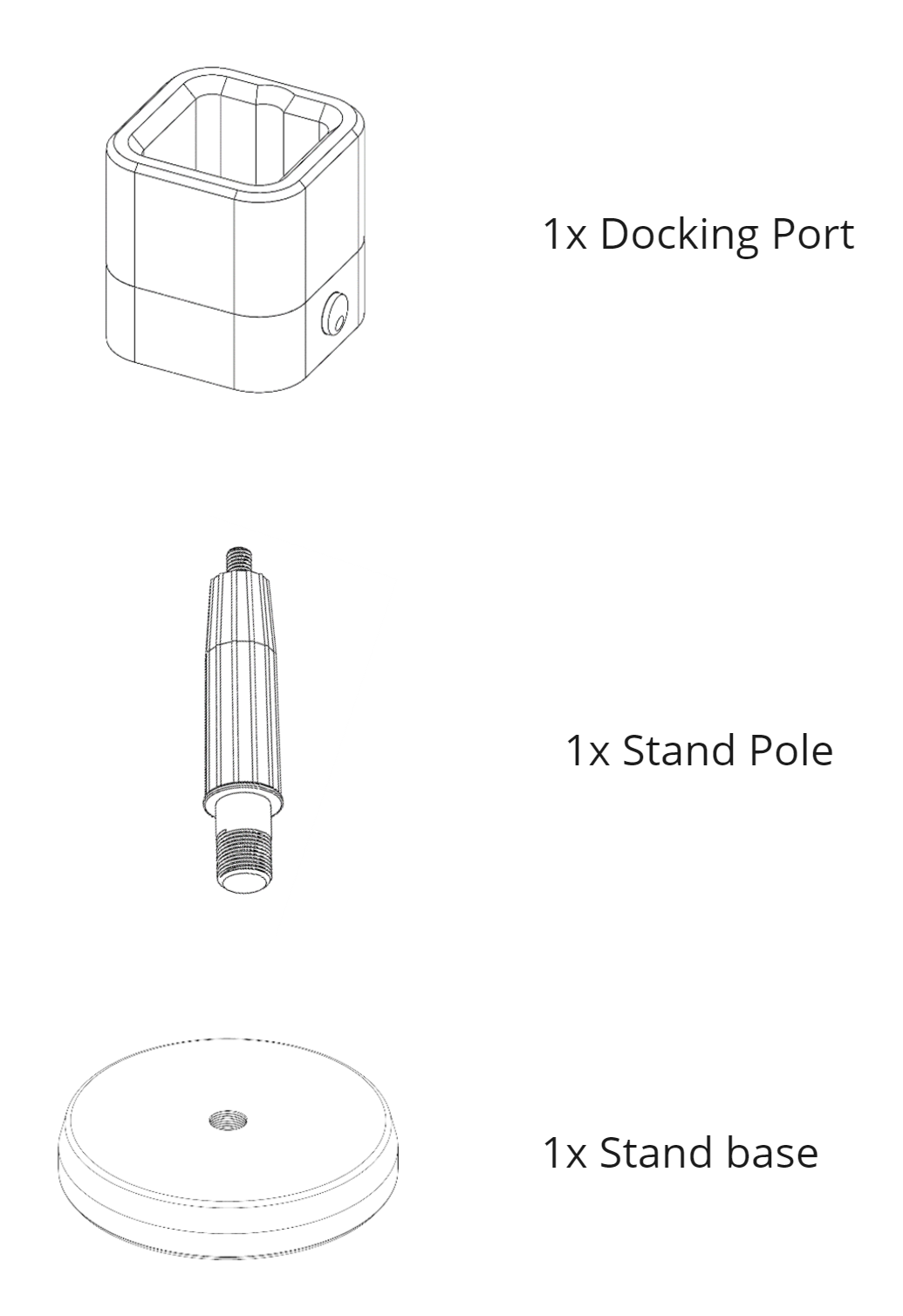

The Interior Stand needs to be assembled - attach the Docking Port to the Armrest Stand. Screw the nut to the bolt and the pole to the base.
Use Interior Stand for Interior Scans or charging CS Gimbal.
To Power On:
Press the Action Button for three seconds. The Status LED flash green light while CS Gimbal is turned on and ready to connect.
To Power Off:
Press again the Action Button for three seconds. The Status LED turns off.

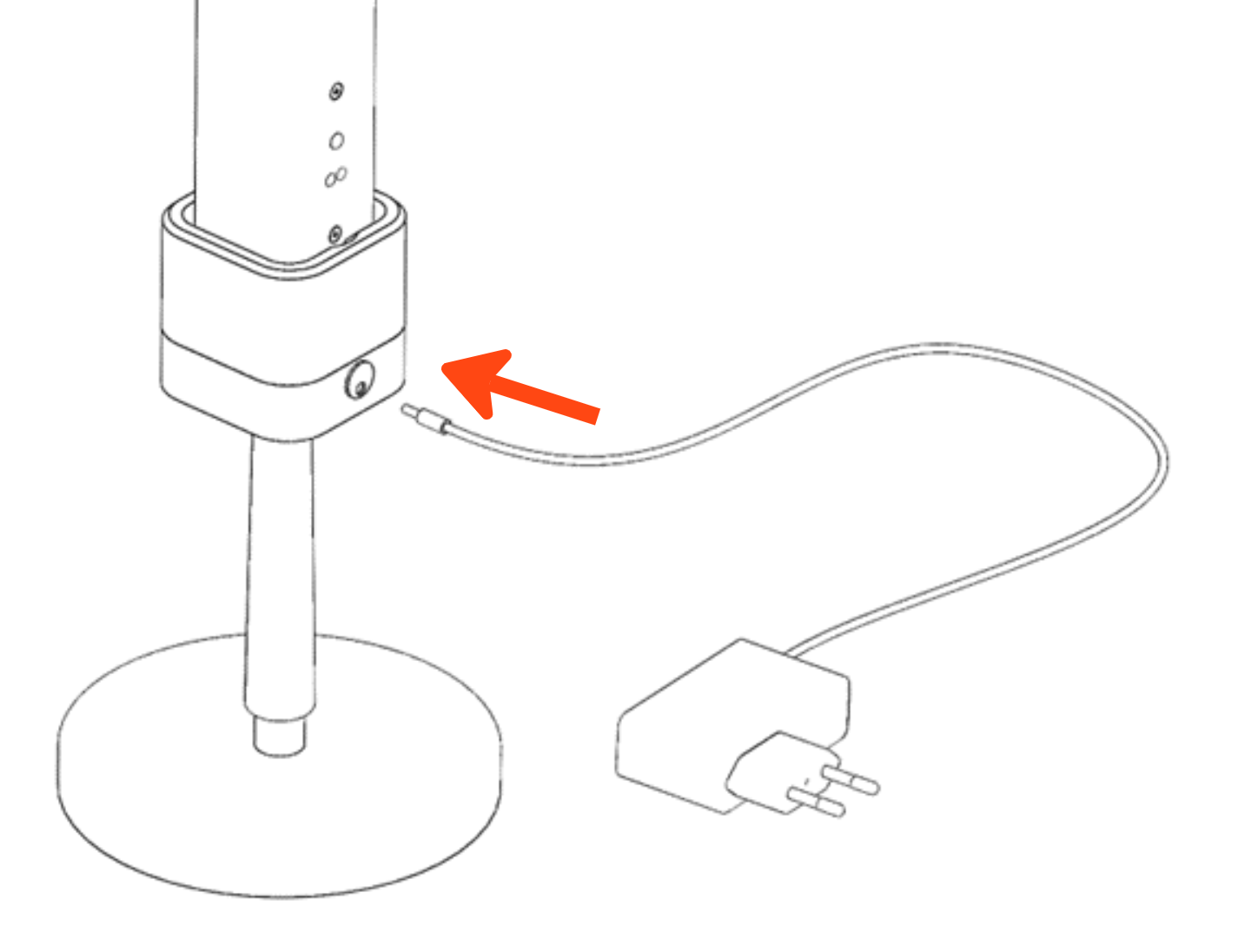

Insert CS Gimbal into Stand, then connect the included charger.
NOTE: There is an indent in Docking Port for proper positioning.
The Charging LED flashes green while CS Gimbal is being charged.
NOTE: You can also charge CS Gimbal by inserting it into CS Robot socket.
⚠ CAUTION:
You can charge VUMO devices only with the provided charger or the AC adapter.
The usage of a different charger than the one is provided, might damage the battery.
Please be caution about the charger you use. If you having any problems with the chargers
contact us for replacement.

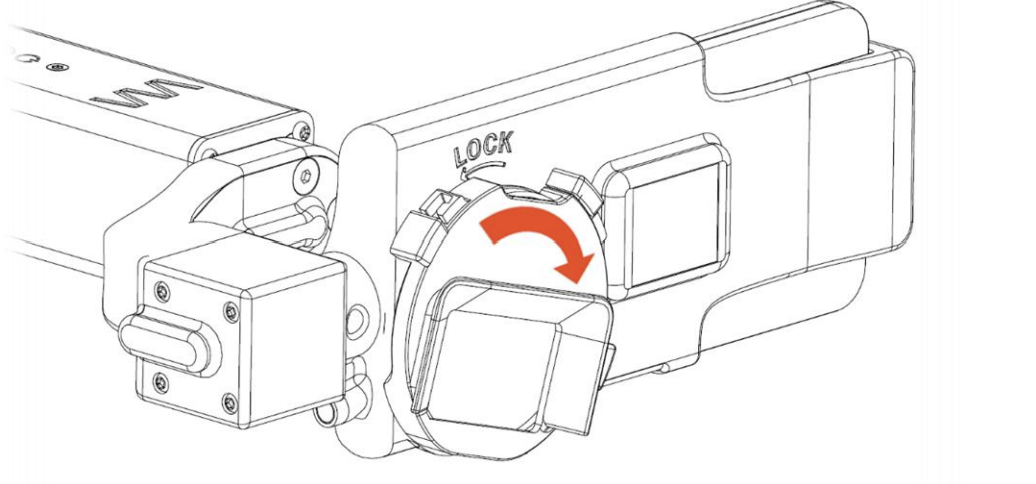

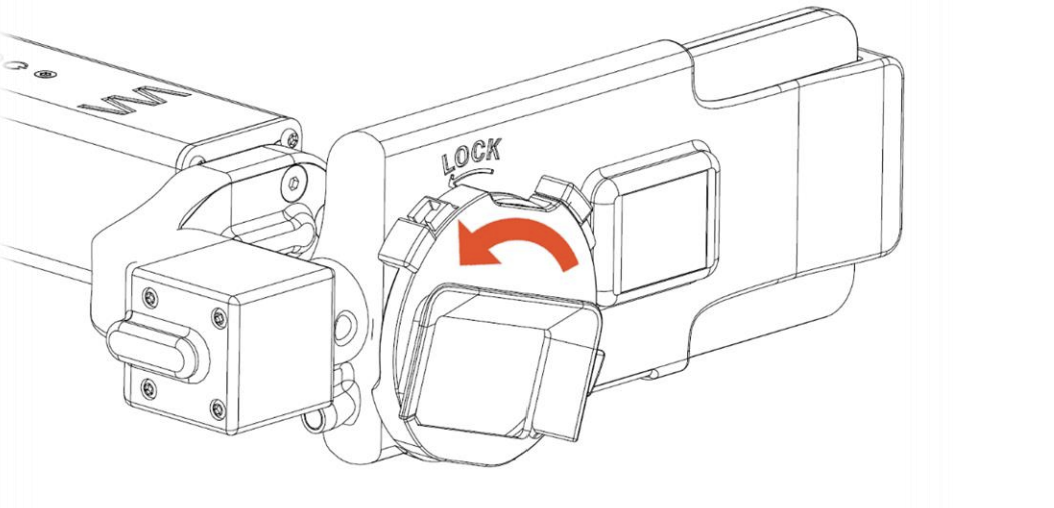

Polarizing Filter:
The filter has to be removed during interior scan.
To remove:
Rotate the filter assembly in the direction indicated by the orange arrow.
To install:
Place the filter assembly on the housing, then rotate it in the direction of the orange arrow until it
snaps into place.

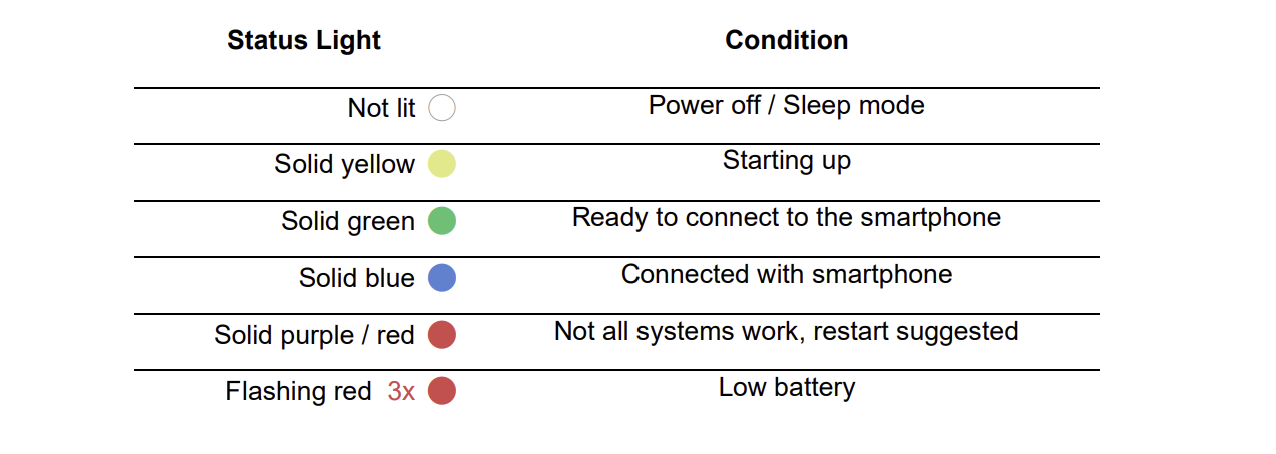

Statues Light:
Setting up:
Before starting for the first time, follow the steps below.
Wi-Fi CONNECTION
STEP 1: Turn on CS Gimbal and press Screen button to unlock the screen
STEP 2: Go to Smartphone settings → Connections → Wi-Fi → choose the network
STEP 3: Go back to main menu and open VUMO app
VUMO app:
The app controls all devices during the scanning session, please take a while to get familiar with
its most important features.
Turn on the Gimbal and open VUMO App. Device should start rotating to the default position.
In the main menu there are three options:
1. NEW SESSION Create a new vehicle photo session.
2. SESSIONS LIST View a list of completed sessions.
3. SETTINGS Application and device settings.
Creating a new session:
Select New Session to begin creating the collection of photos.
Choose and select the type of photos you want to take. Full session includes:
1. Photo of VIN
2. Exterior photos
3. Interior photos
4. Photos of details
NOTE: Order of those is customizable in Session config menu.

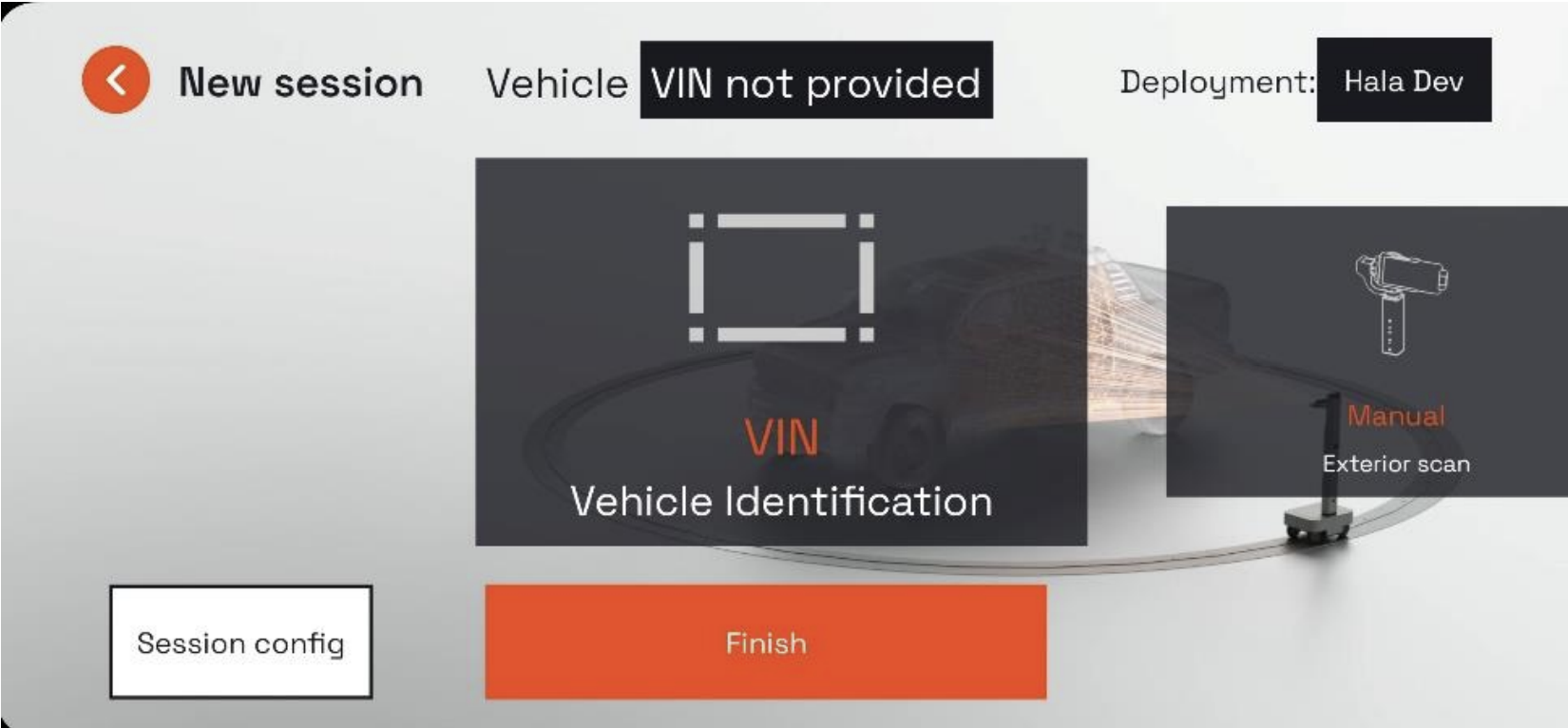

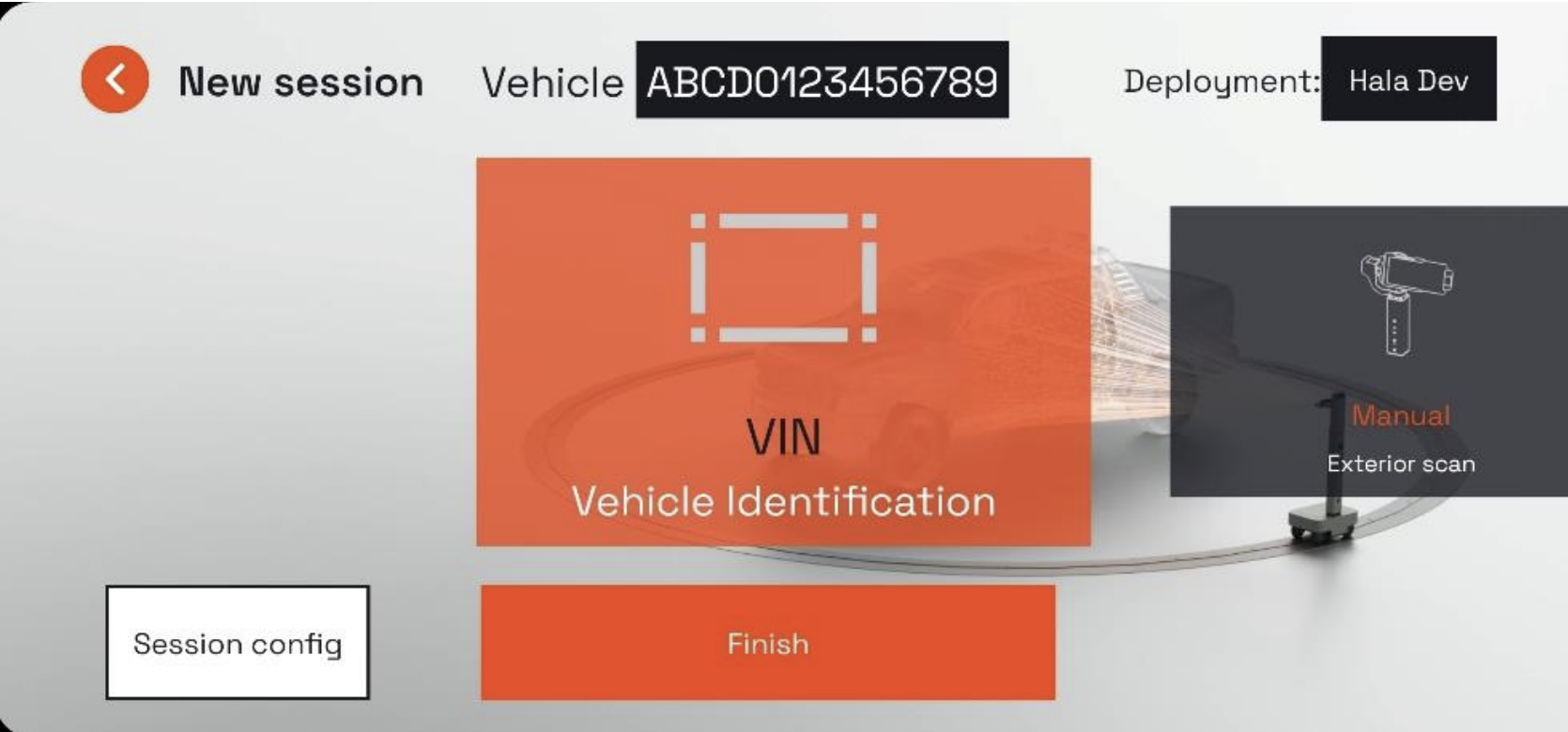

Once the selected type of photo group is completed, the tile turns orange:
Before entering the VIN:
After entering the VIN:
#

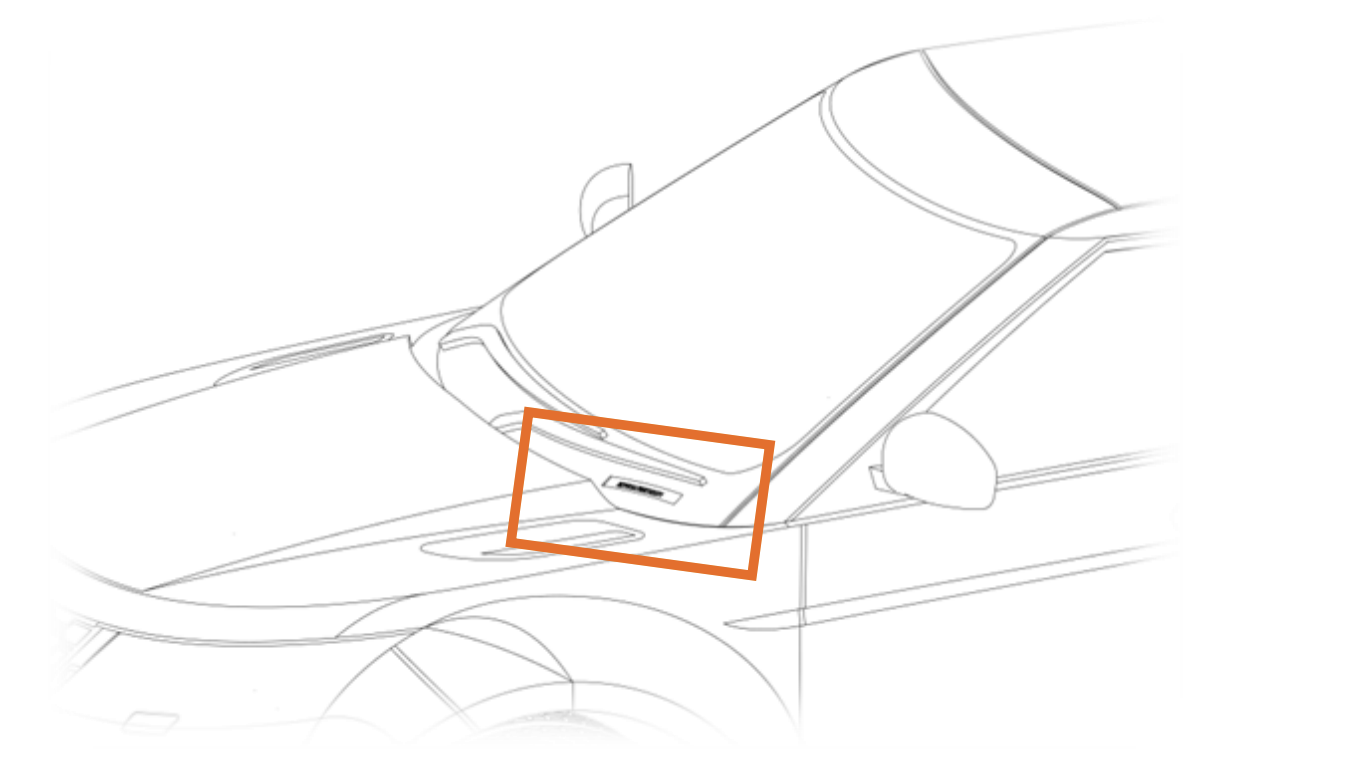

VIN- Vehicle Identification Number :
A photo of the VIN or license plate is crucial to correctly identifying the car.
STEP 1: Select New Session, then select VIN
STEP 2: Choose how you want to enter VIN (QR / Barcode, Text scan or Enter VIN manually)
Press the Action Button or tap Scan to take a picture and automatically detect VIN.
STEP 3: Press Accept VIN if the data is correct.
Details:
Use this mode to take photos of the details.
STEP 1: Select New Session, then select Details.
STEP 2: Tap Take Photo to capture images of the detail.
STEP 3: Tap Accept to save the photo if the picture is satisfactory, or Discard if you
would like to retake the photo.

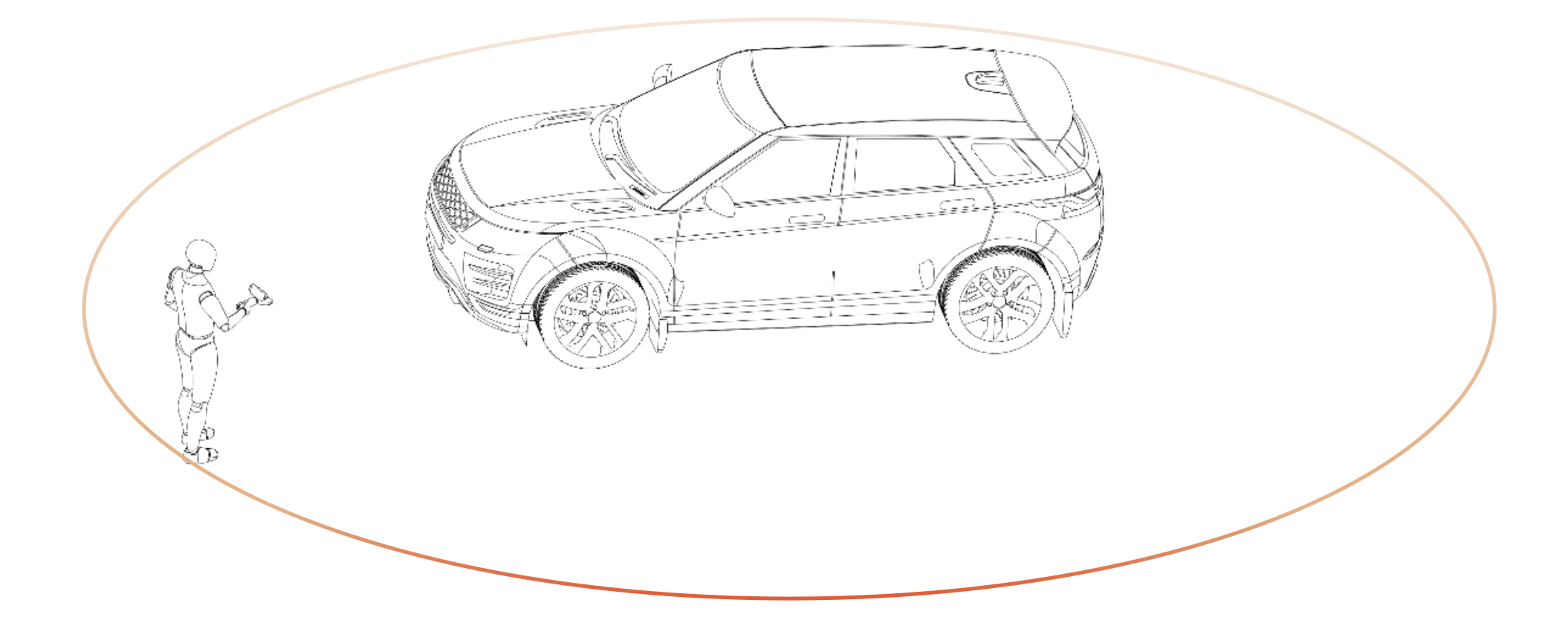

Manual Exterior Scan:
The user walks around the vehicle and takes photos of its body.
STEP 1: Select New Session, then select Manual.

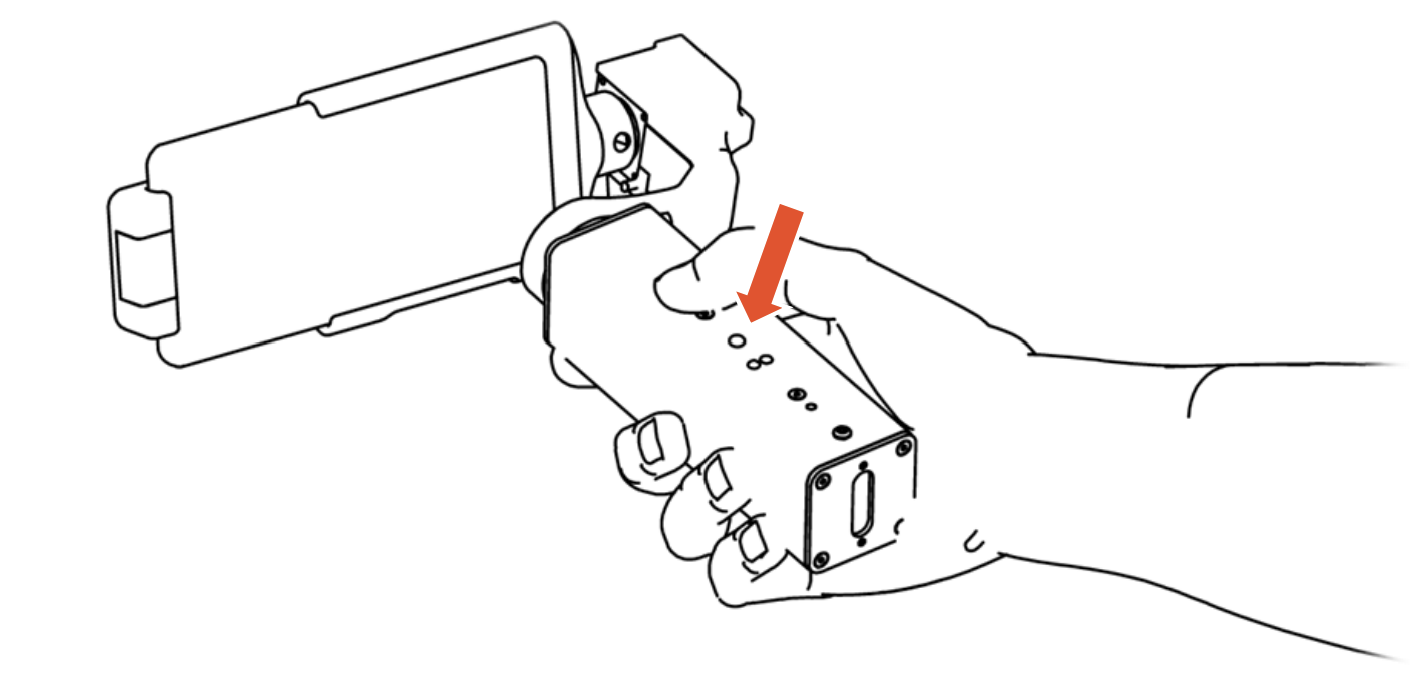

STEP 2: Hold CS Gimbal during the Gimbal Scan as shown below for the proper stabilization.
STEP 3: Using your thumb press Action Button to take a photo and press again to Accept it.
STEP 4: Walk around the car taking photos, remember that the entire vehicle should always fit
in the screen.
STEP 5: Press Finish to end process of taking photos of vehicle’s body.
Interior Scan:
Interior scans are performed using an interior stand, which has a stable base that makes it easy
to place on the front or rear seats of your car.
STEP 1: Select New Session, then select Interior.
STEP 2: CS Gimbal must be placed in the Interior Stand.

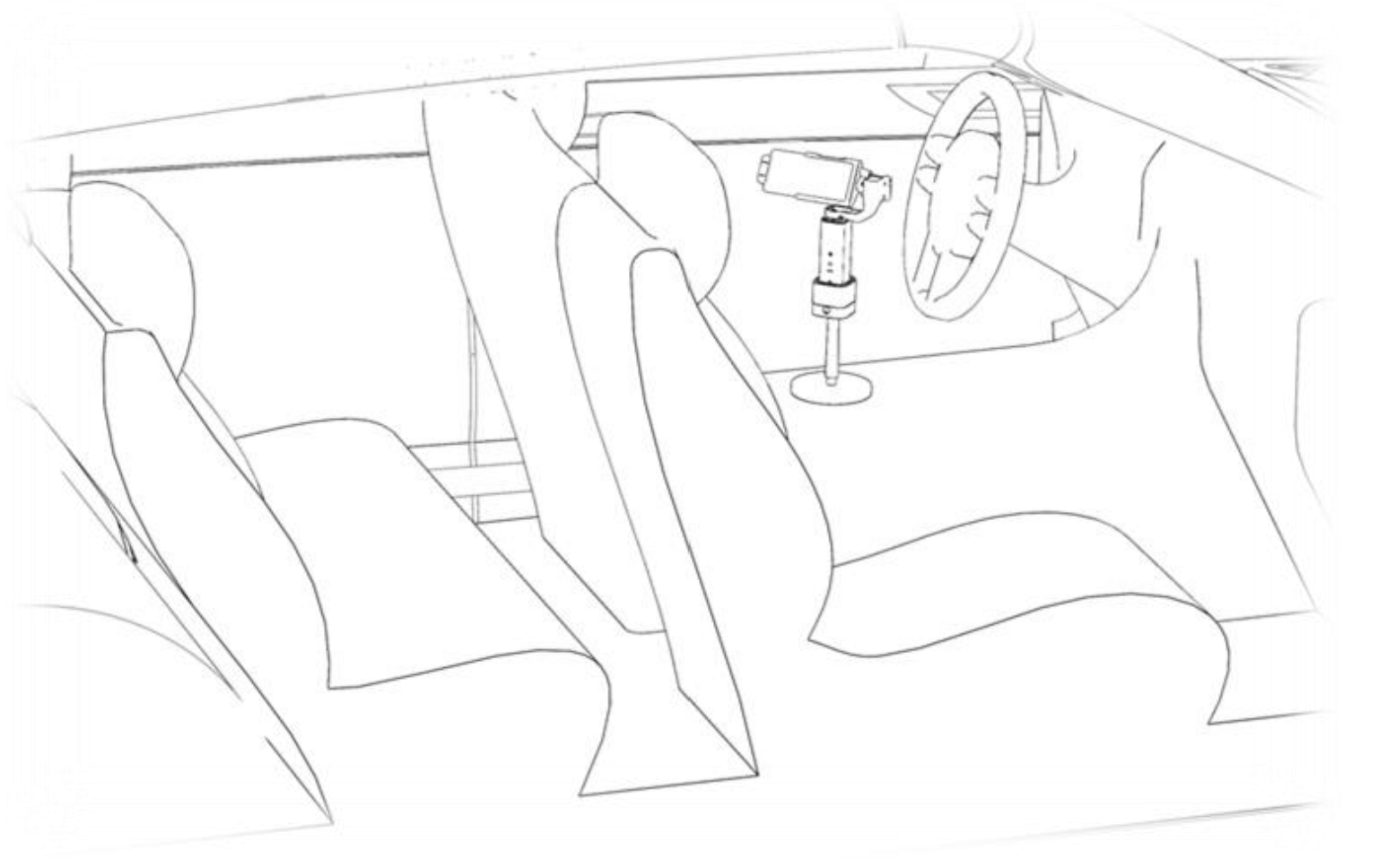

STEP 3: Put the device inside the car on stable surface. Typically, the best place to place the
device is on the armrest. If there is no armrest, place it on the front seat.
STEP 4: Select Start and close all car doors before the device starts taking photos.

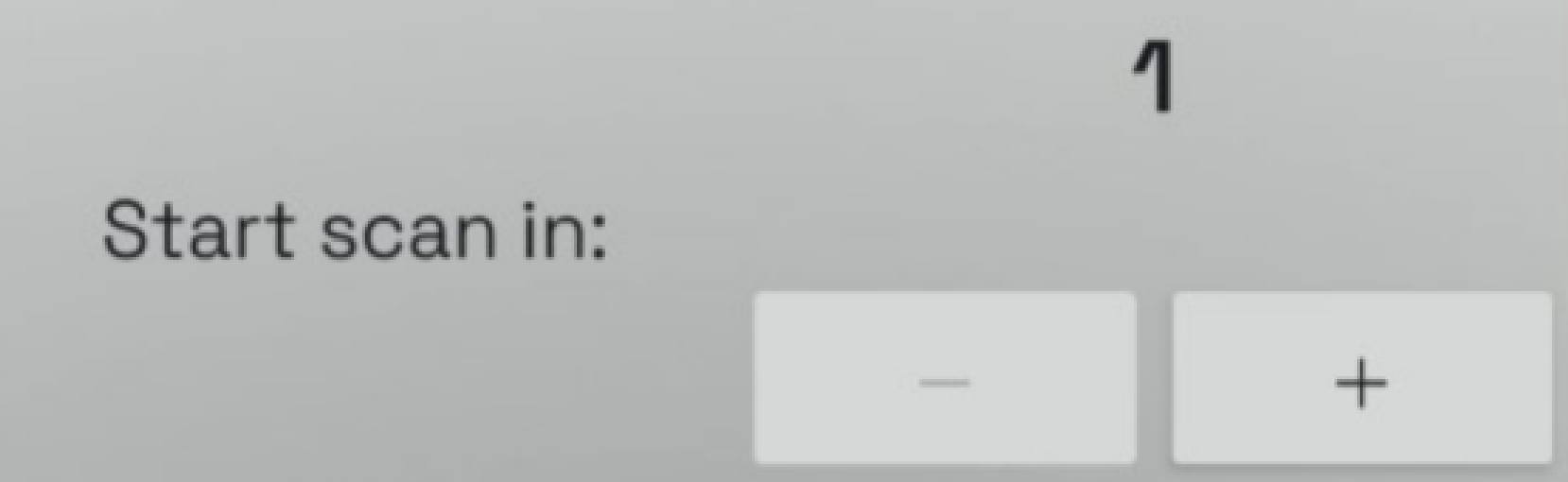

NOTE: You can set a timer to give yourself enough time to evacuate.
STEP 5: After approximately 2 minutes, a notification sound will let you know that the scan is
complete.
CarScanner Exterior Scan:
*available only with CS-Robot
For a truly autonomous experience, CS Robot is used for photography. It drives around the car,
taking a series of photos at specific stops, ensuring the consistency of the photos.
STEP 1: Select New Session or choose car from Session List, then select Exterior.

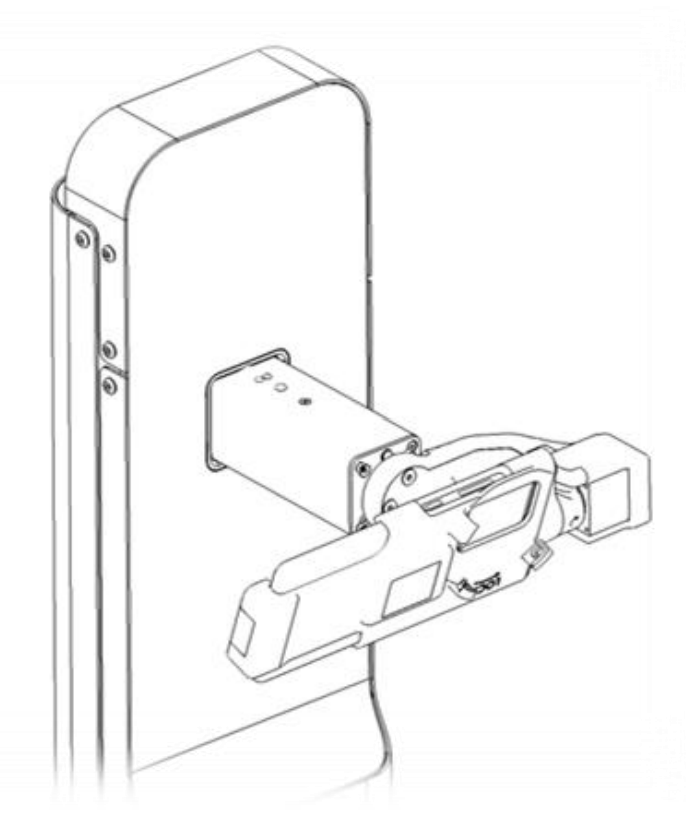

STEP 2: CS Gimbal must be placed in CS Robot.
STEP 3: Put the CS Robot on the START/END piece of track.
STEP 4: Tap Start , the robot should start taking photos around the car.
Dashboard Panel:
All photos taken by VUMO devices are sent to a dedicated Dashboard Panel, where the user
can see the results and generate reports.

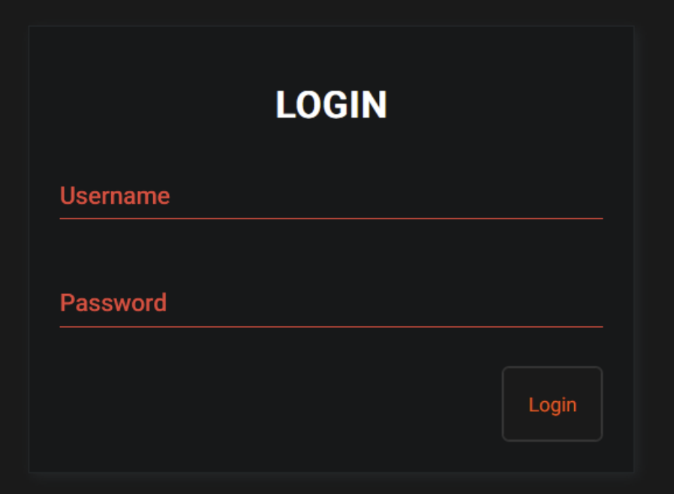

Signing in:
Enter the username and password provided by email
You can also use the magic link that redirects the user without using the password.

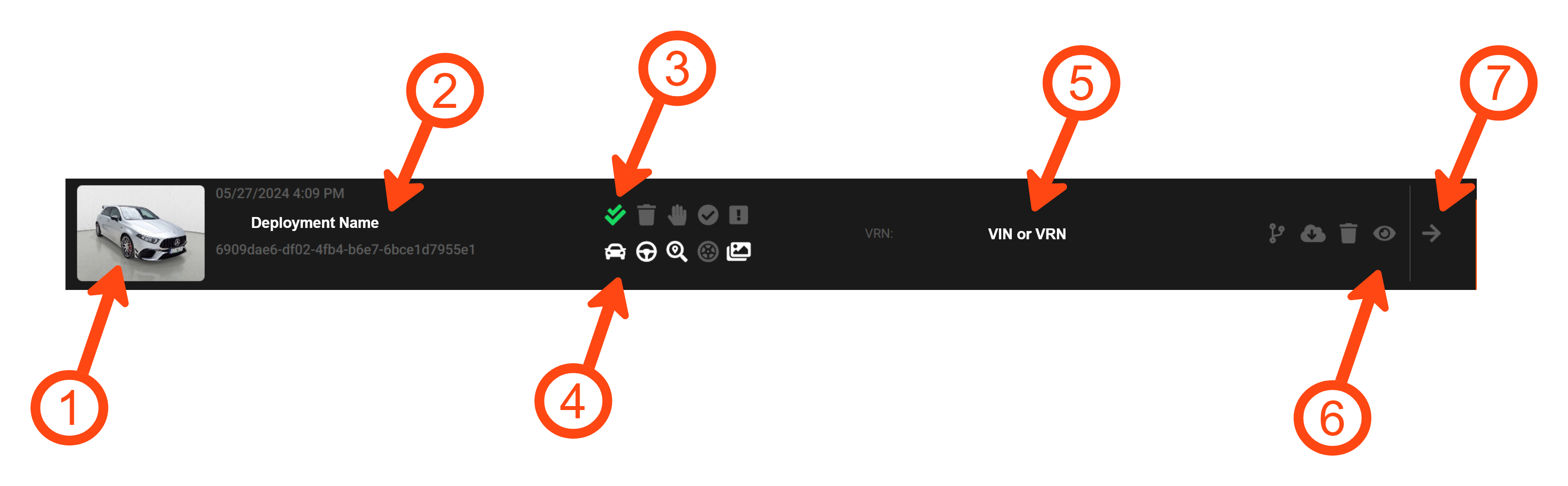

Navigation:
|
5. Car properties 6. Link to VUMO 360 Viewer 7. Link to VUMO 360 Viewer |

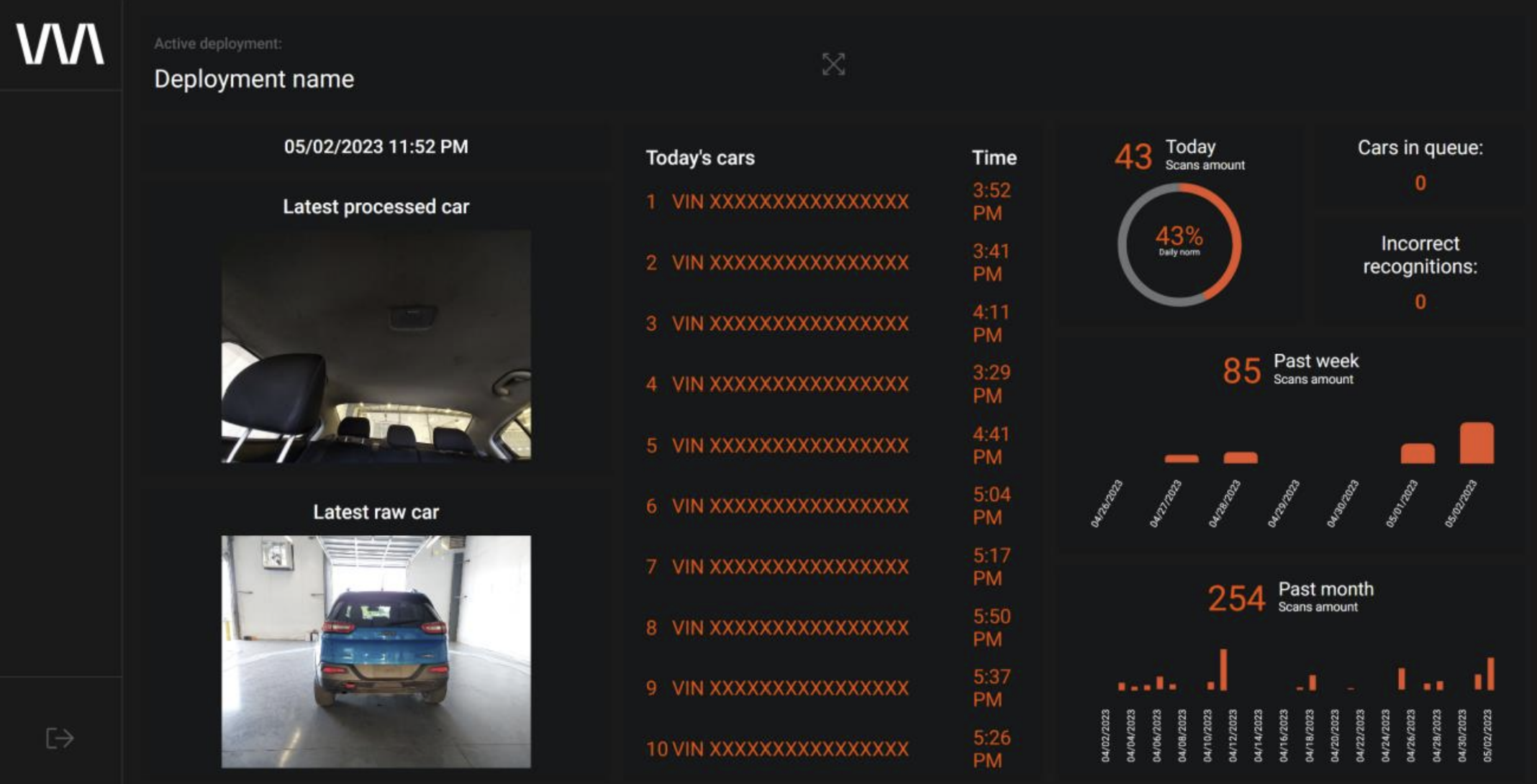

Monitoring:
Supplement:

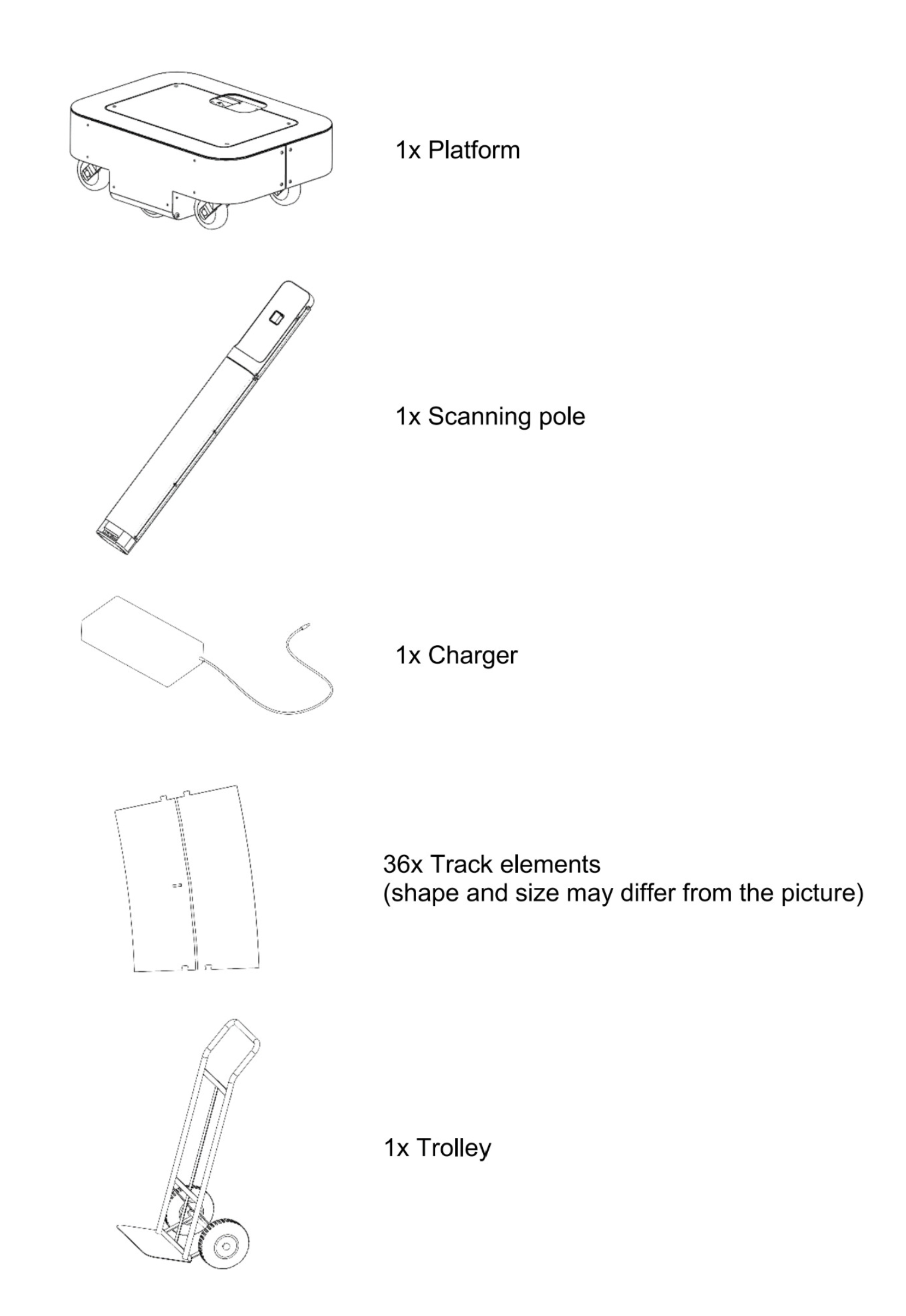

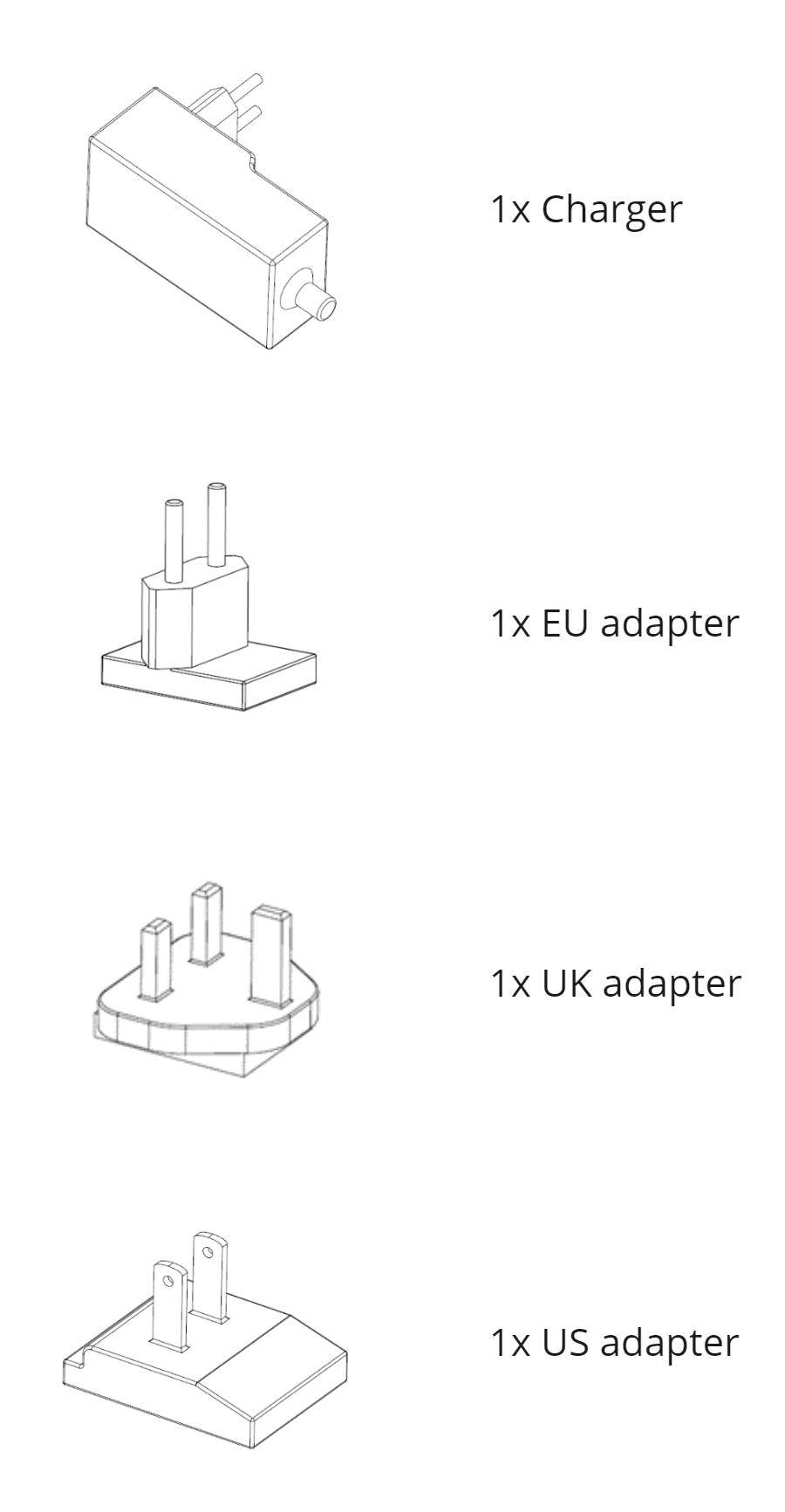

The CS Robot package includes:

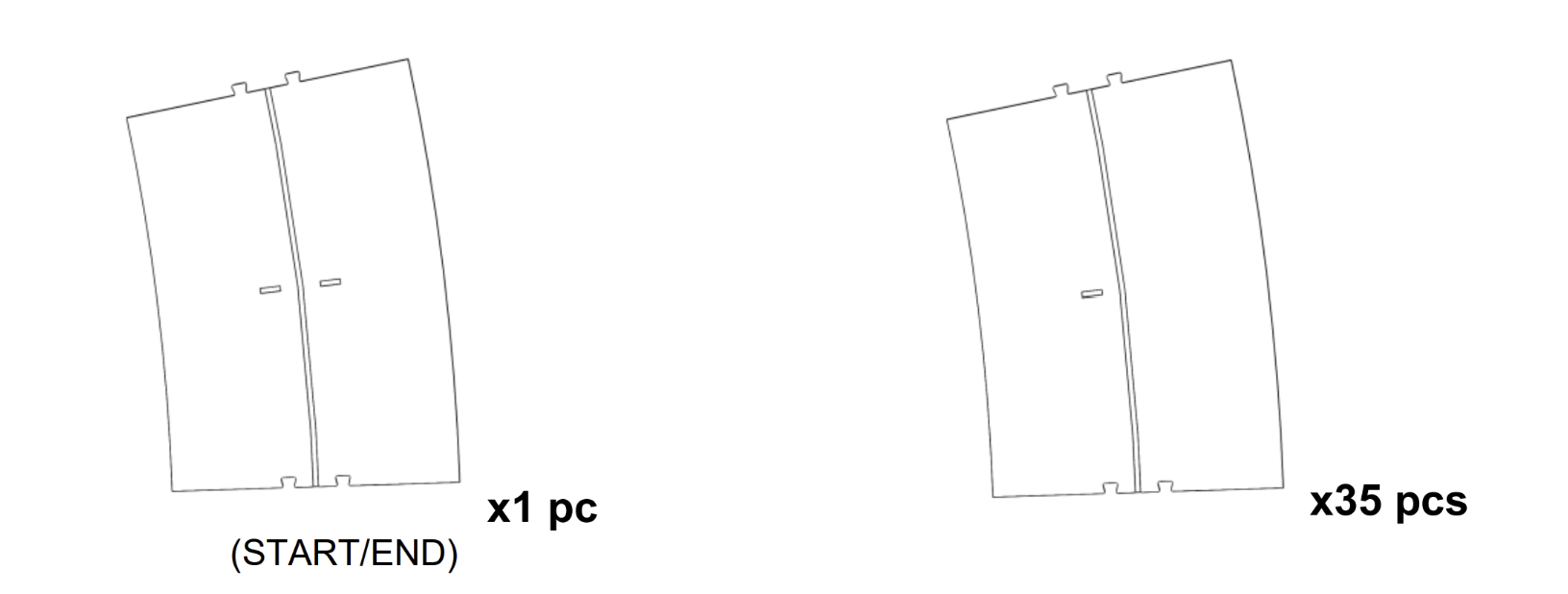

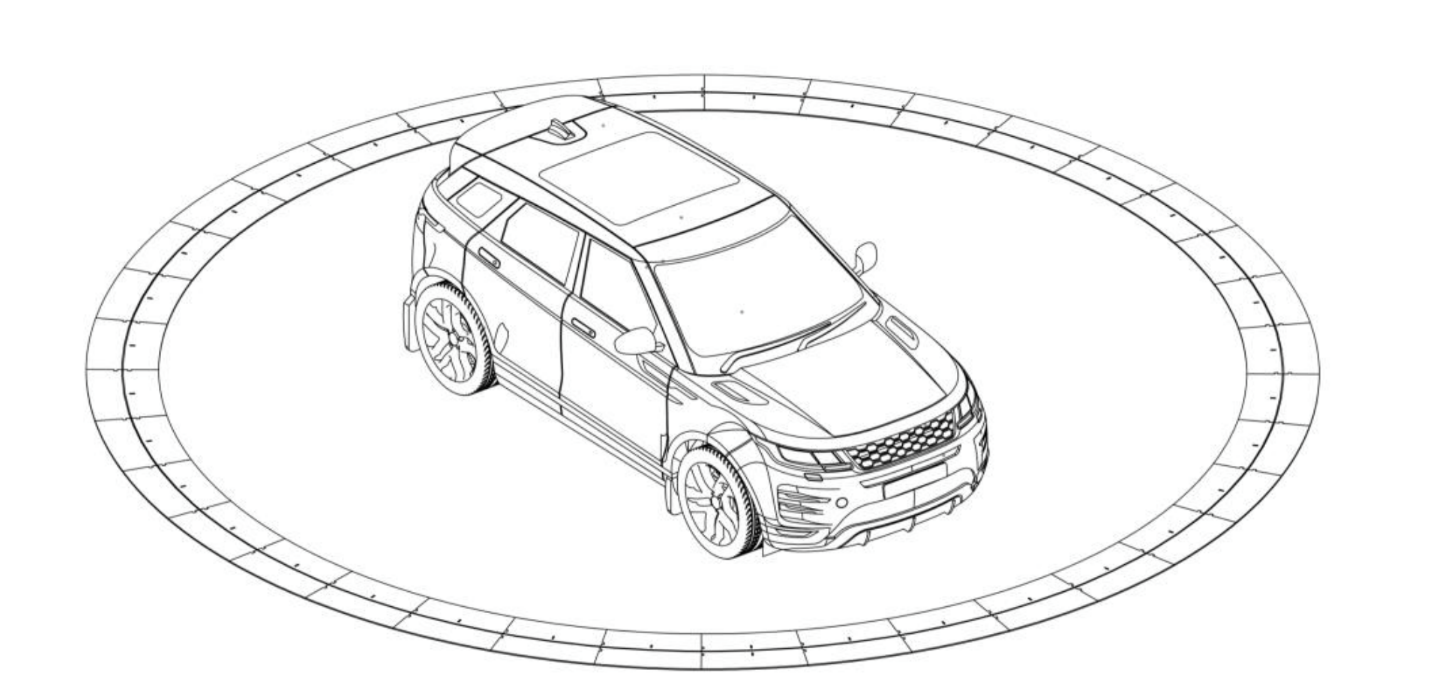

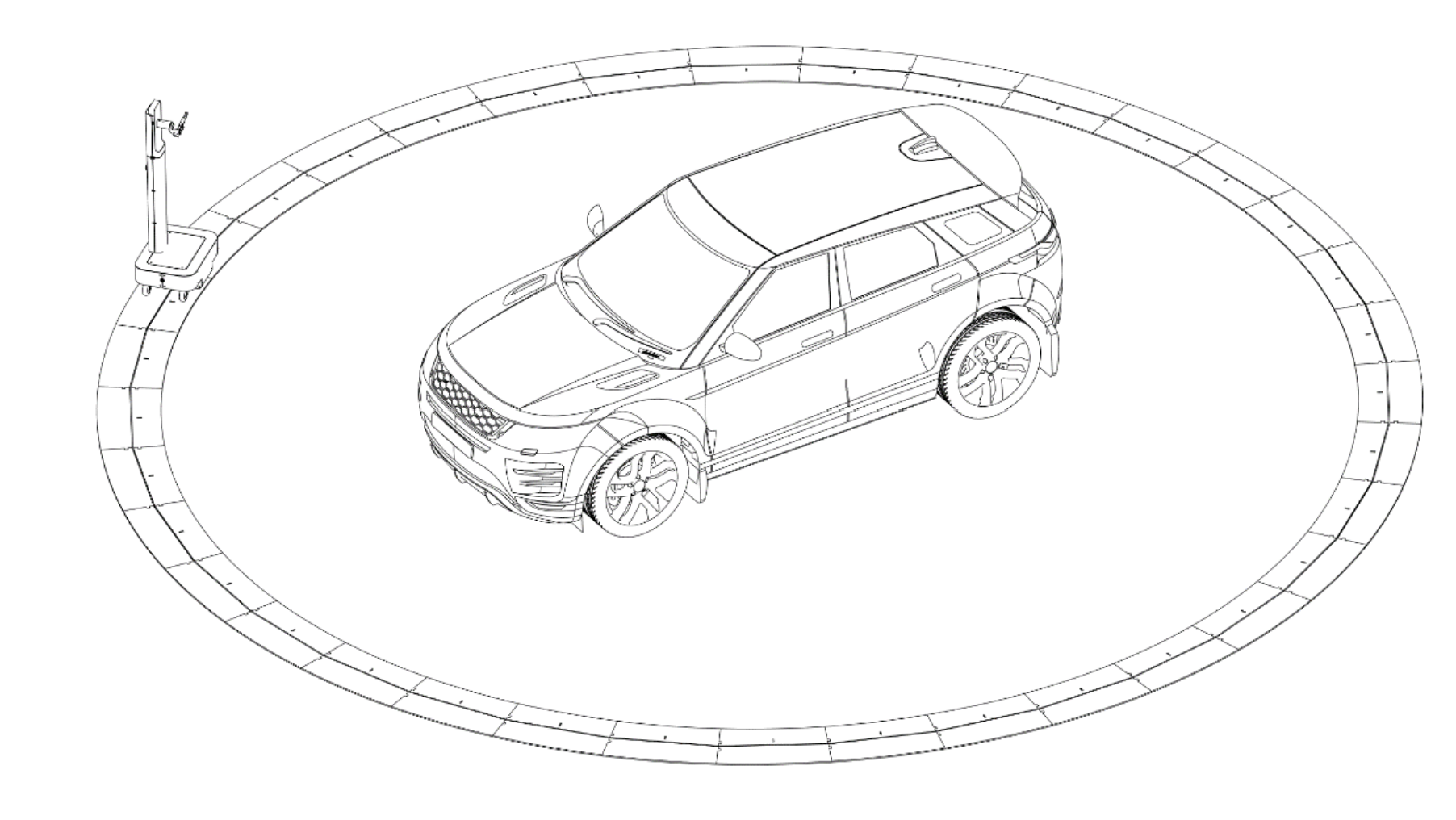

CS Track Assembly:
The track consists of 36 elements that need to be assembled in the form of a closed loop for the
CS Robot. One piece of track is unique and has a double stop, it determines where CS Robot
starts and ends all scans.
STEP 1: Make sure the floor is flat, without holes or obstacles.
STEP 2: Choose the place where the START/END stop will be.
STEP 3: Lay out the track on the floor and assemble all the pieces together.
NOTE: The shape of the track depends on the deployment and may differ from the image
above.
Powering ON/OFF:
To Power On:
Make sure the emergency stop switch is disengaged by turning it counter clockwise. Hold the power button for three seconds. The robot should beep and light up.
To Power Off:
Hold the power button for three seconds.

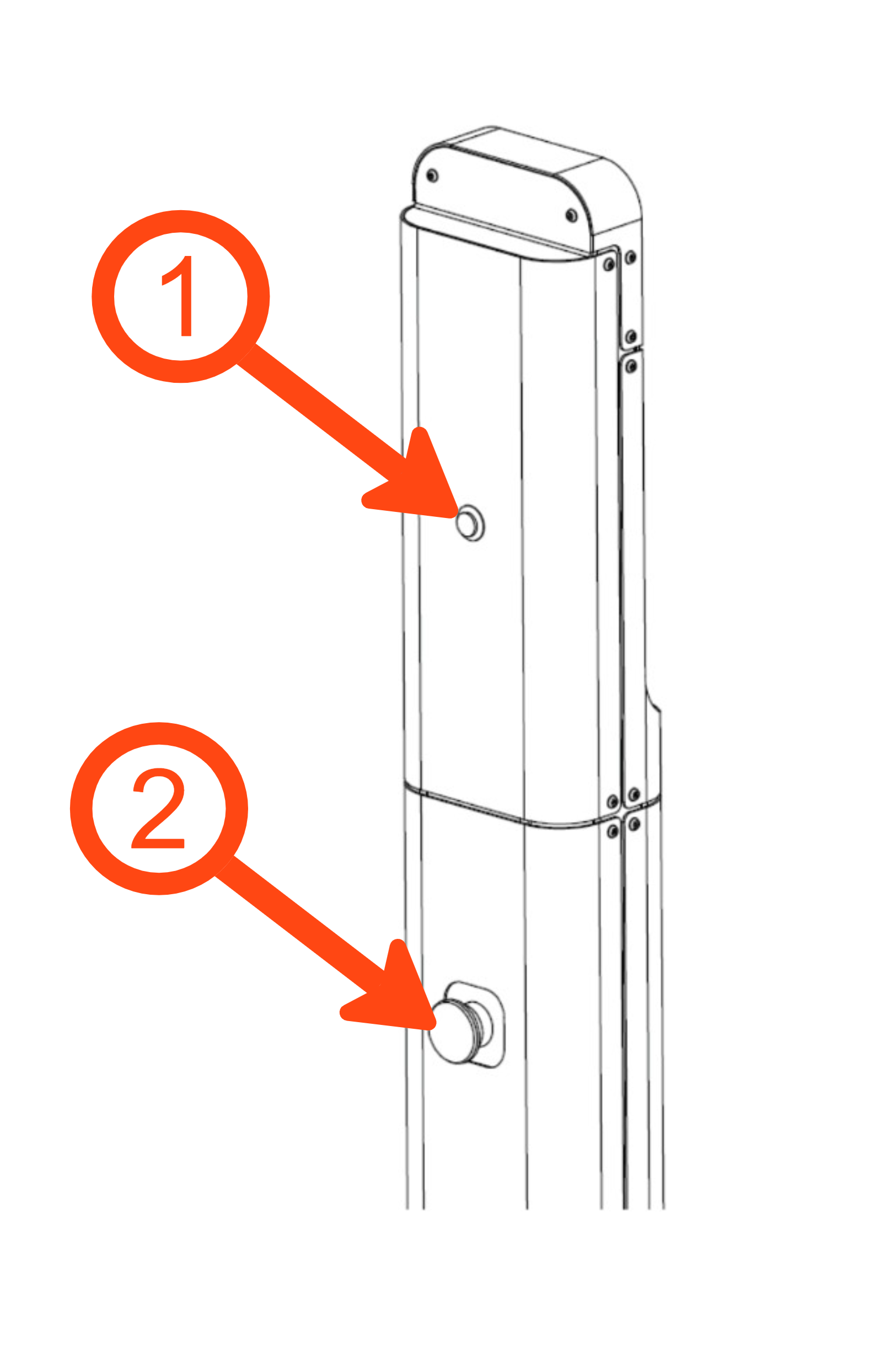

Emergency stop switch:
The robot is equipped with an emergency switch. Once engaged, it cuts off all power to the robot. Use it in case of an emergency or malfunction.
|
2. Emergency Switch. |

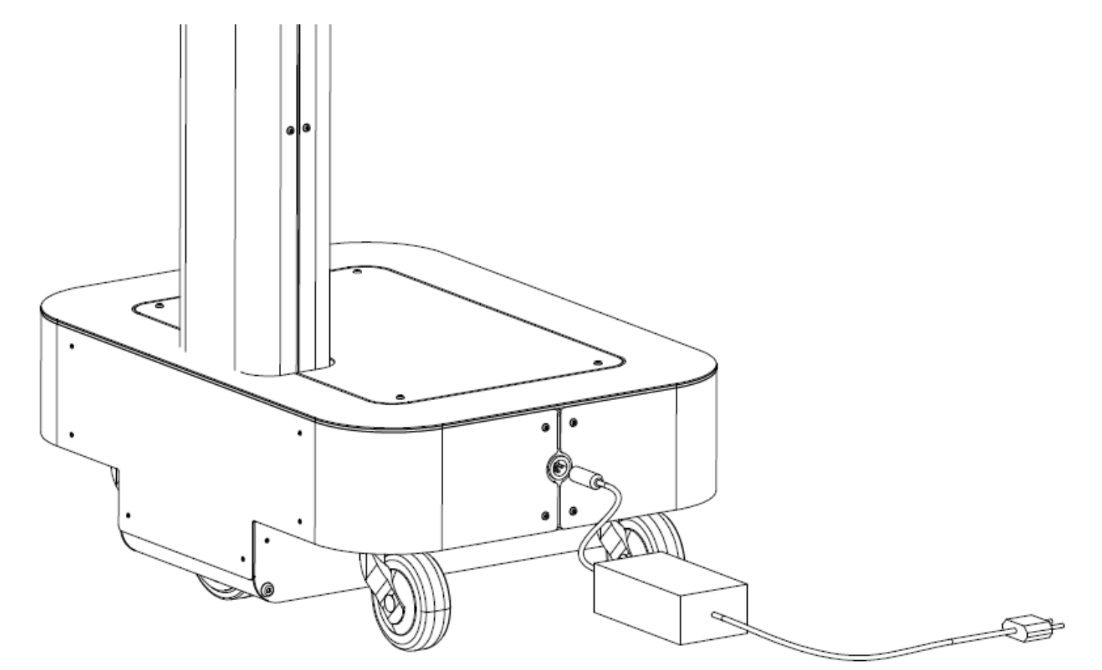

Charging:
Connect the charger as shown in the picture.
NOTE: The robot will not charge if the emergency switch is engaged.

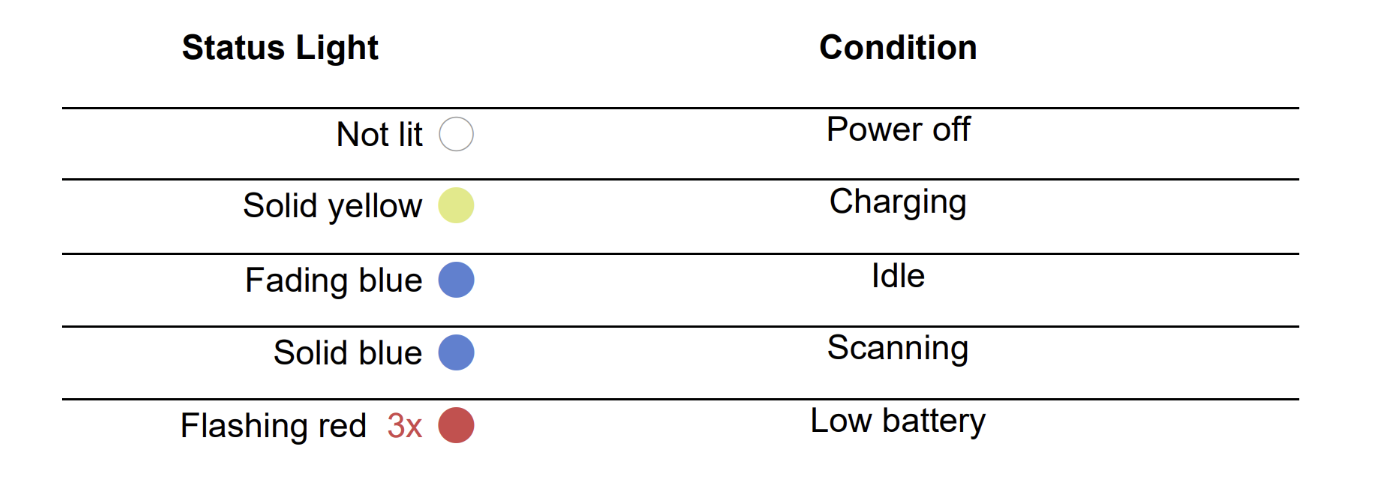

CS-Robot Status:
Connecting to CarScanner Robot:
Make sure the robot is turned on.
STEP 1: Select Settings, then select Devices.
STEP 2: Tap Add, then select CS Robot
STEP 3: Select proper device from the list.
Thank you for choosing VUMO
