Typical gimbal damage examples

Dorota (VUMO Team)
  • Updated

  1. Impact marks and scratches
    Visible impact marks (usually drop damage) and scratch marks on various parts of the gimbal body.

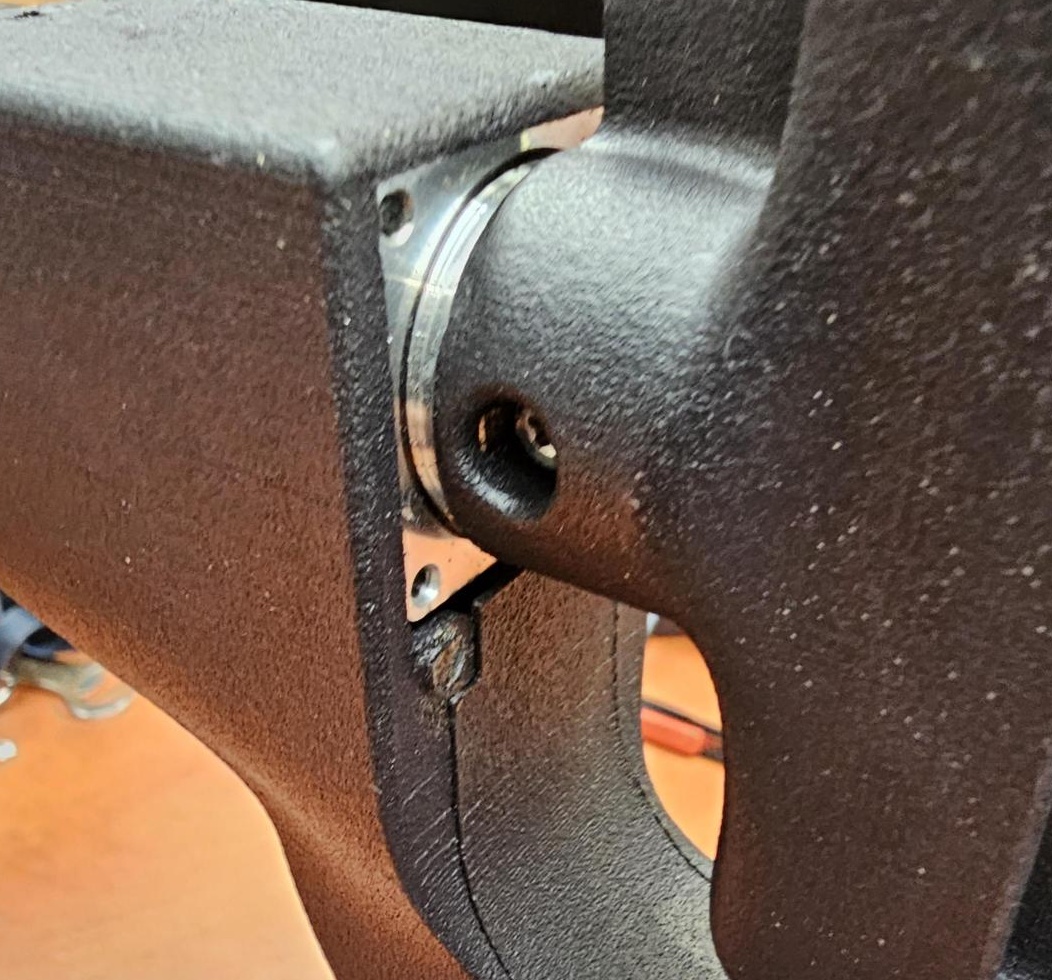

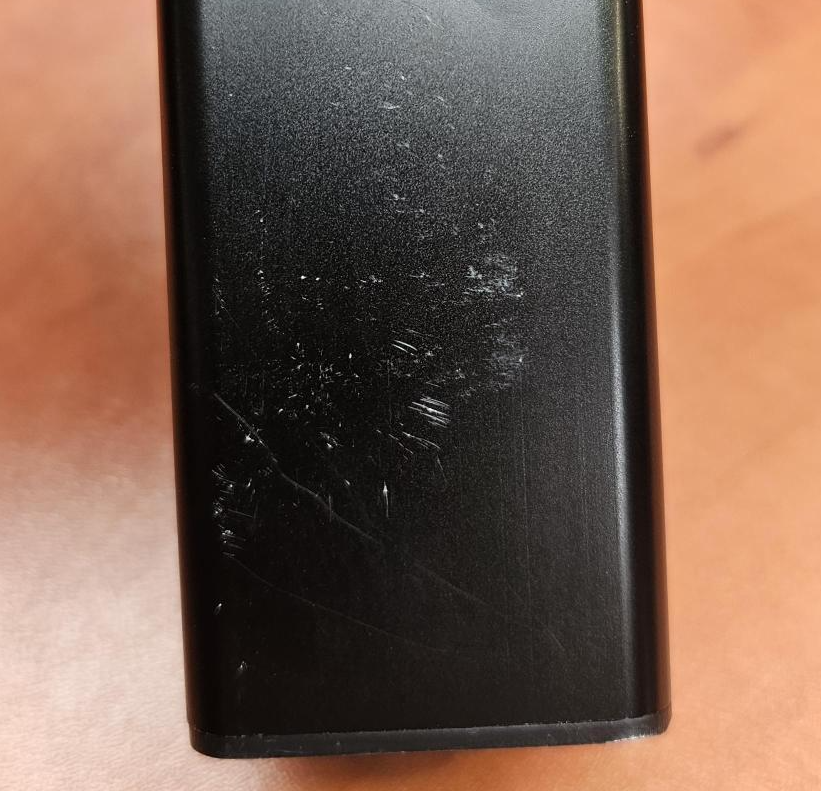

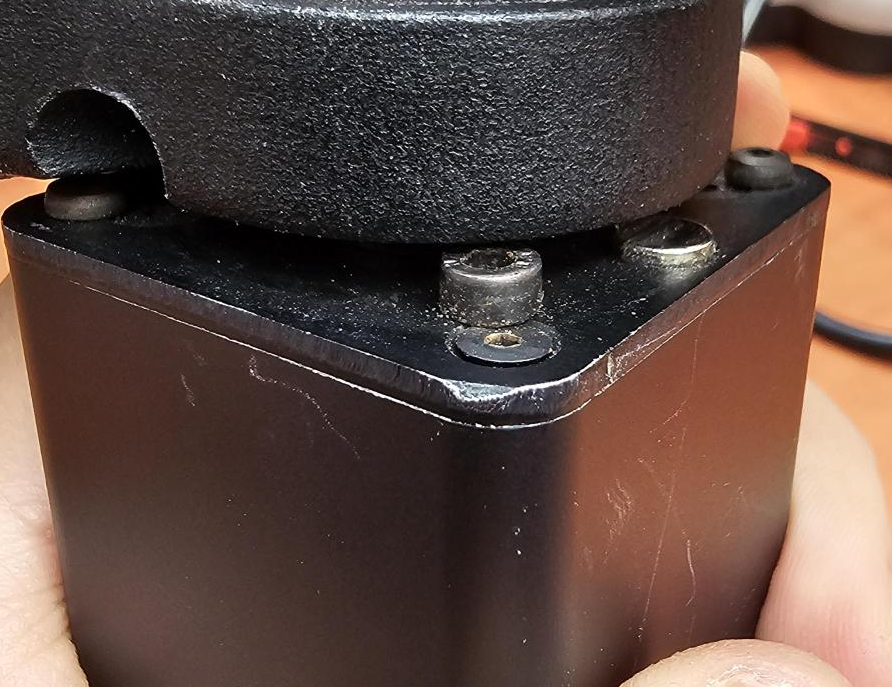

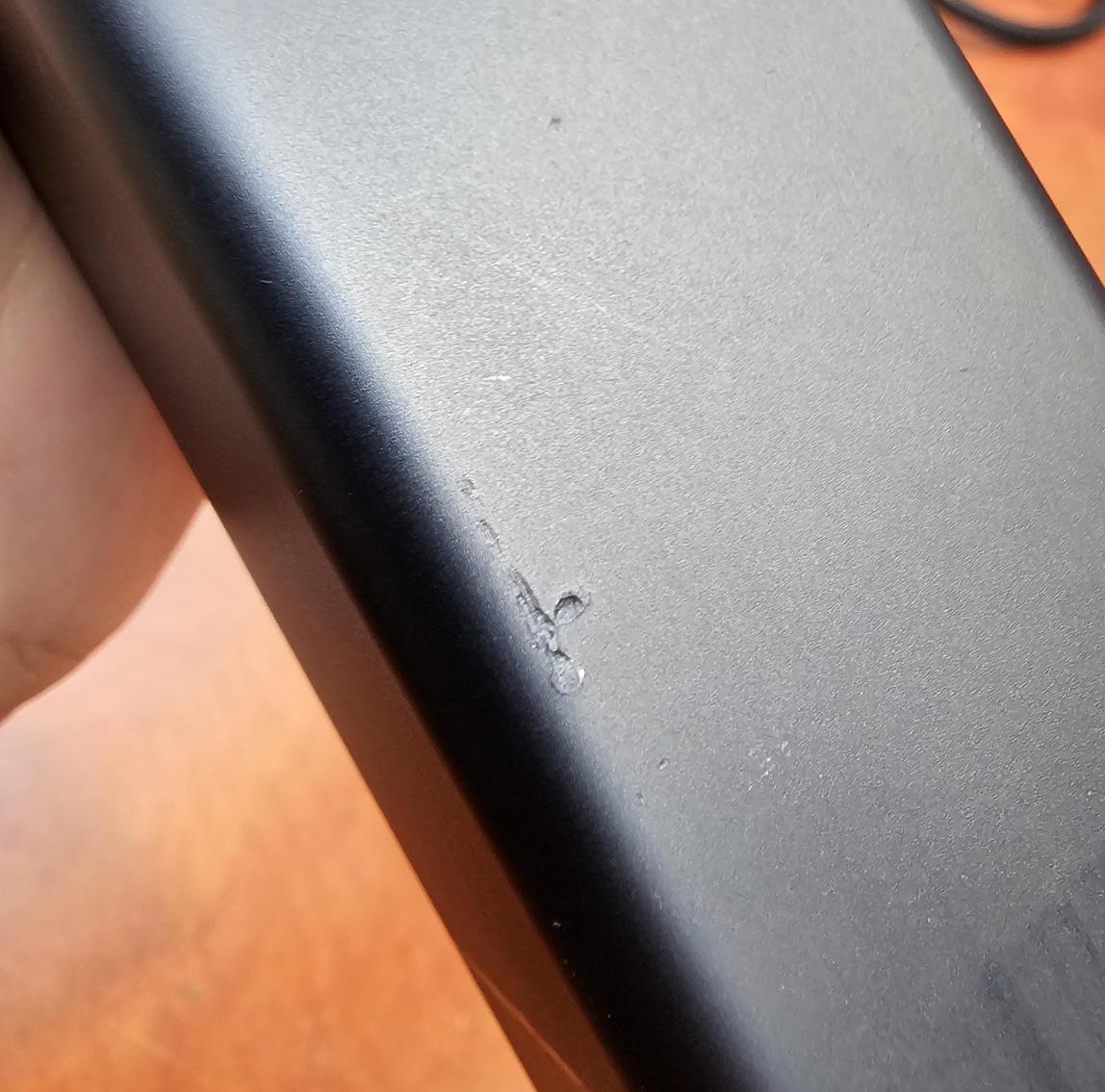

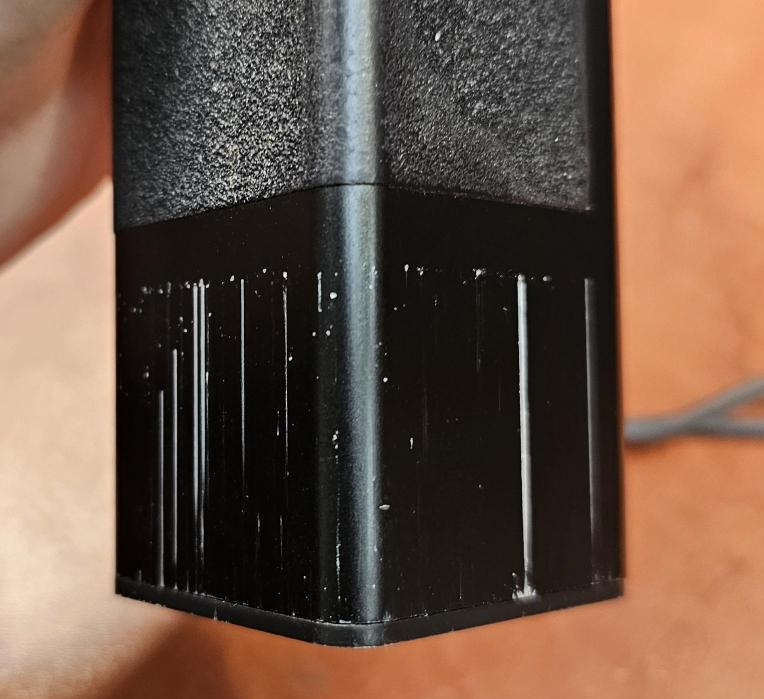

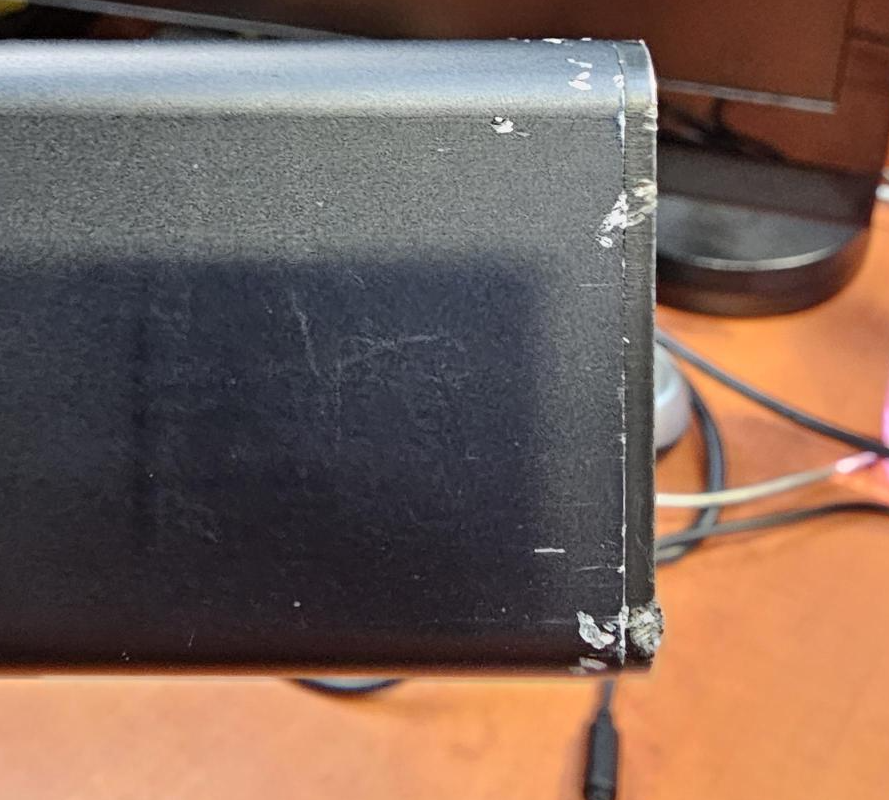

    Examples: Gimbal case and top/bottom plate

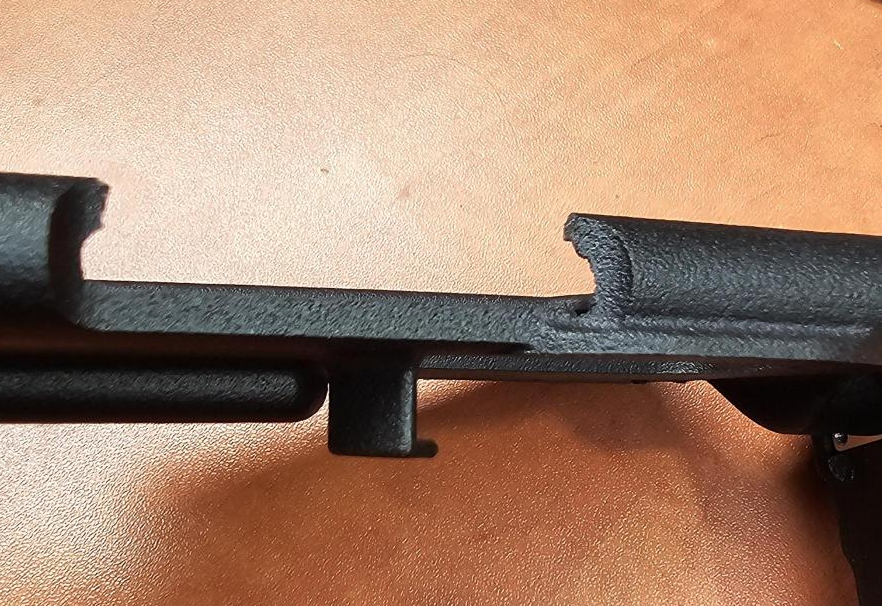

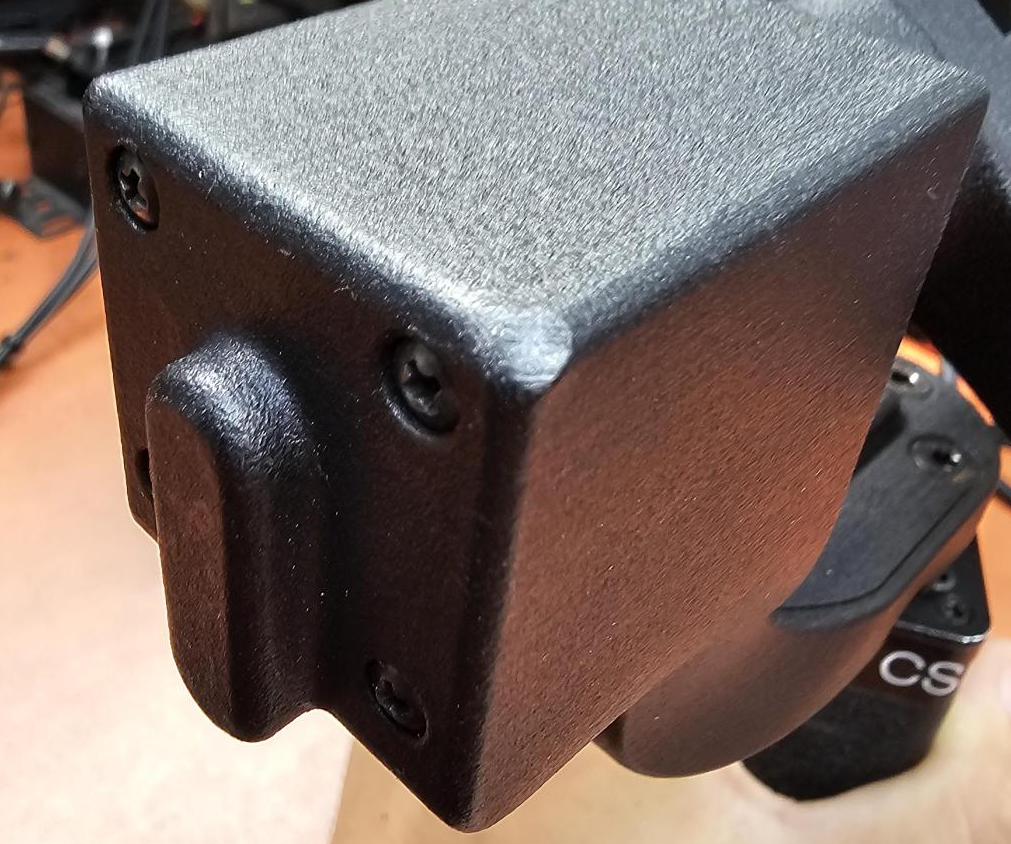

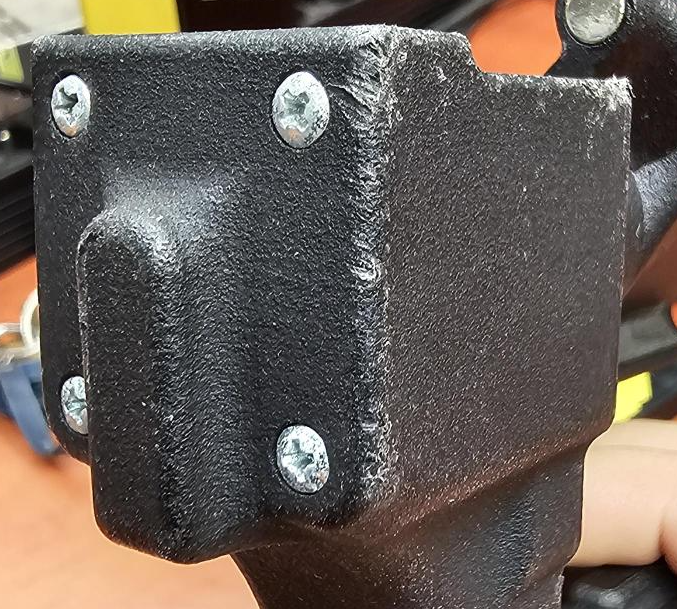

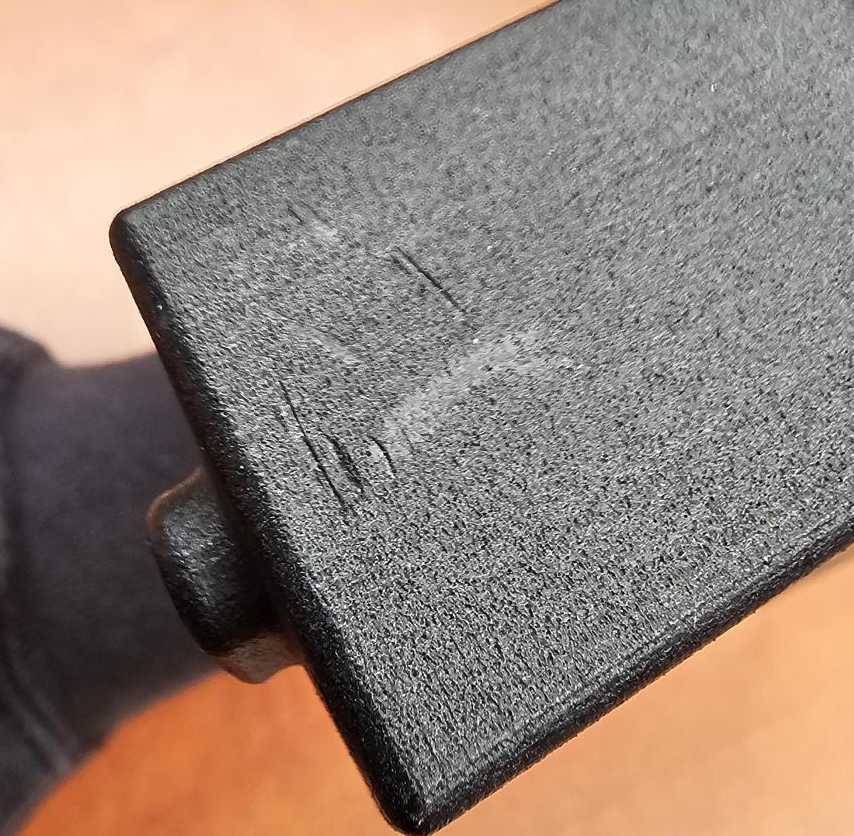

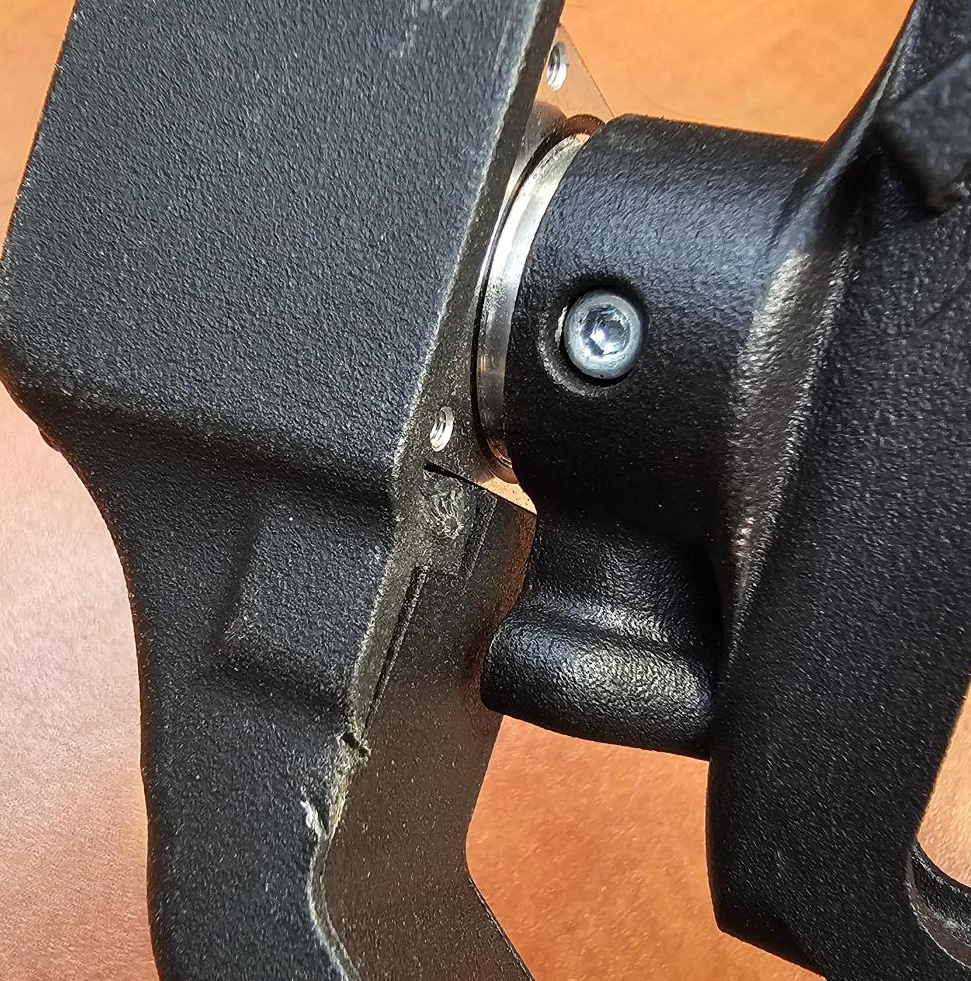

    Examples: Gimbal arm





  2. Fractured gimbal
    Disassembled gimbal due to mechanical damage, eg. broken parts, visible cables sticking out.

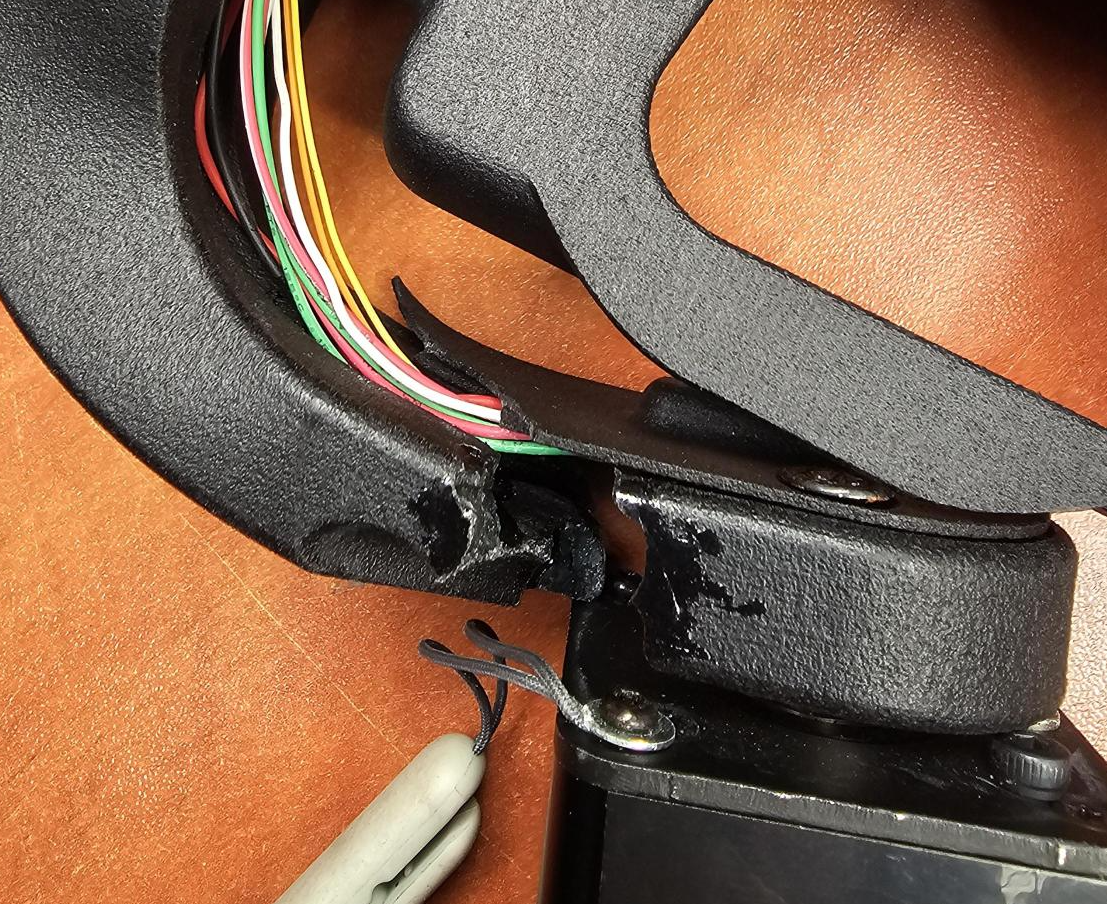

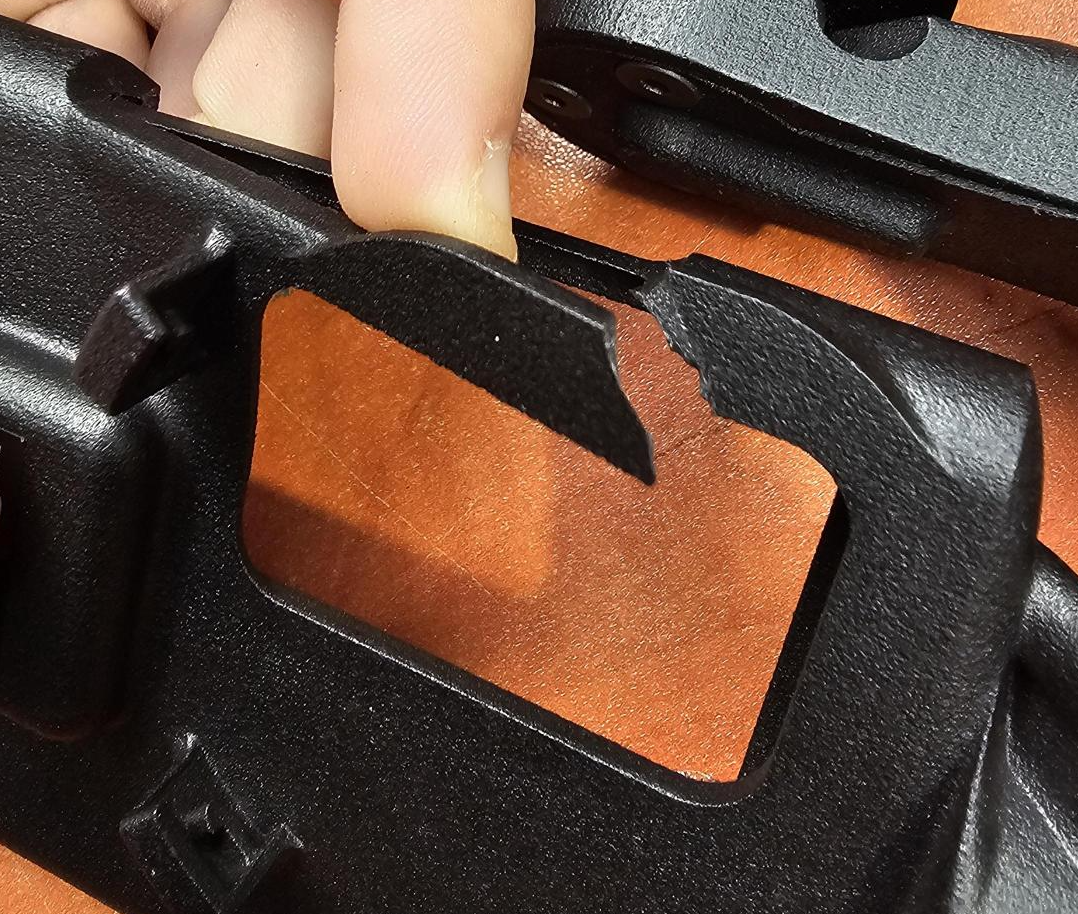

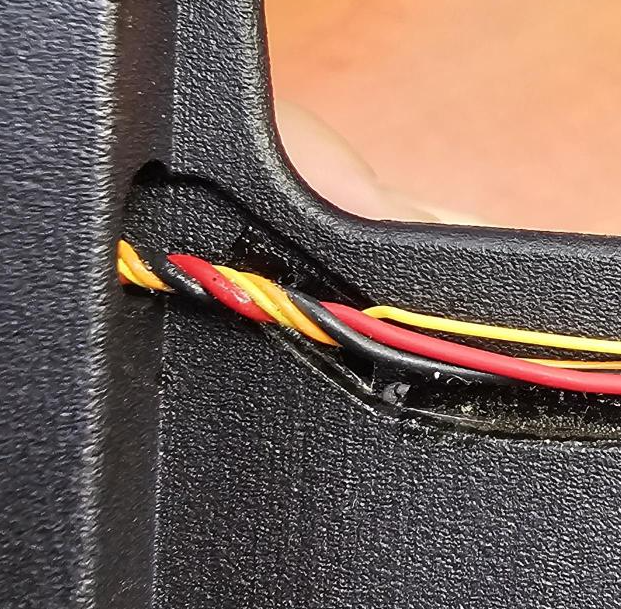

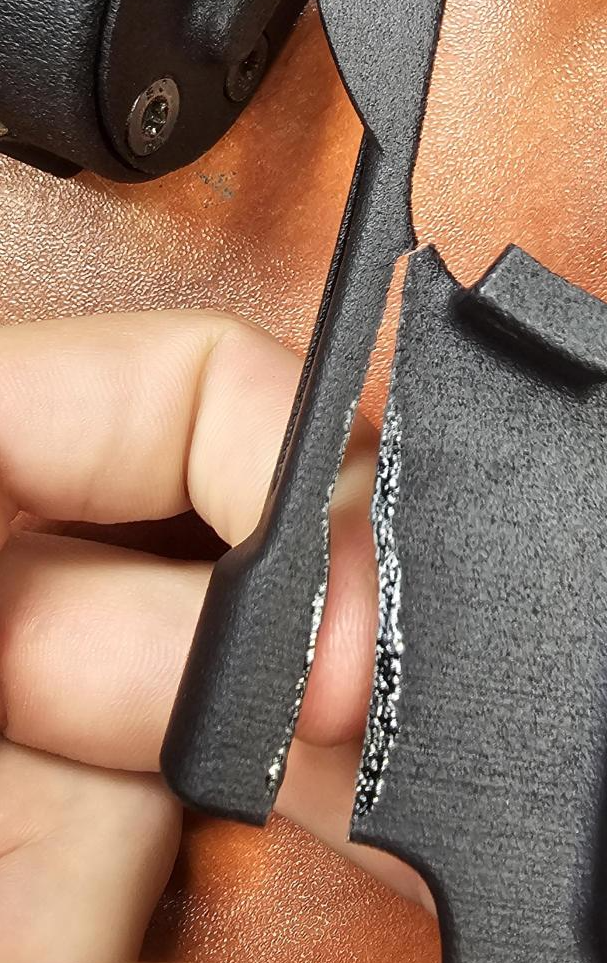

    Example: Broken part with visible cables

  3. Broken pin/stopper
    A broken pin/stopper can cause the gimbal head to rotate unexpectedly, which may lead to further hardware damage, eg. twisted or torn IMU cables.

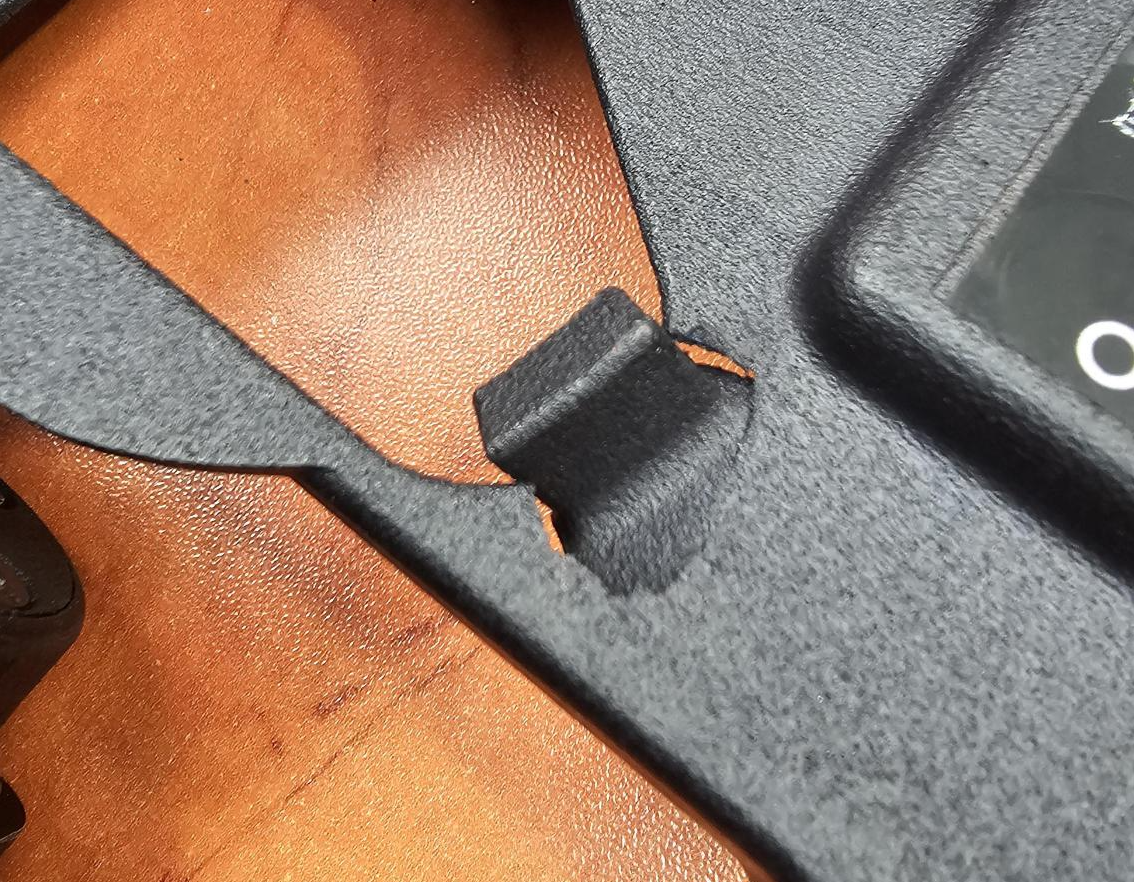

    Example: Broken pin/stopper

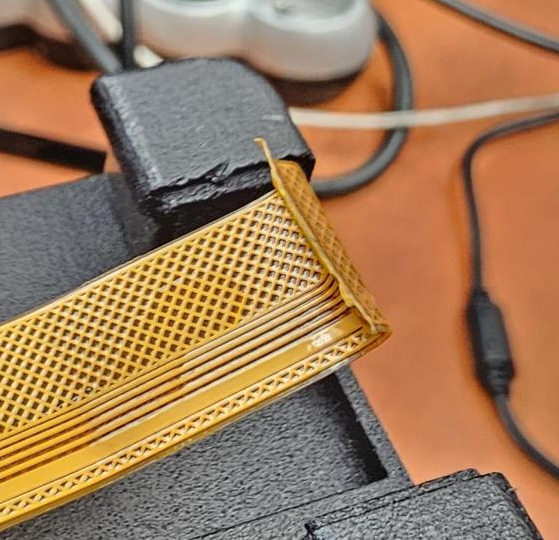

    Example: Twisted/torn IMU cables

  4. Damaged phone
    Visible damage, impact marks and scratches on the phone, eg. shattered screen or camera lens.

  5. Damaged phone case
    Visible damage, impact marks and scratches on the phone case attached to the gimbal head.

    Examples: Damaged phone case
